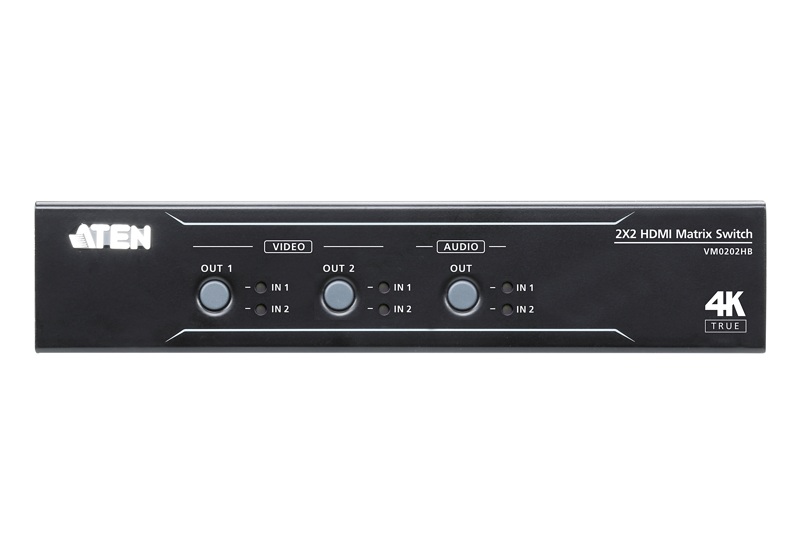

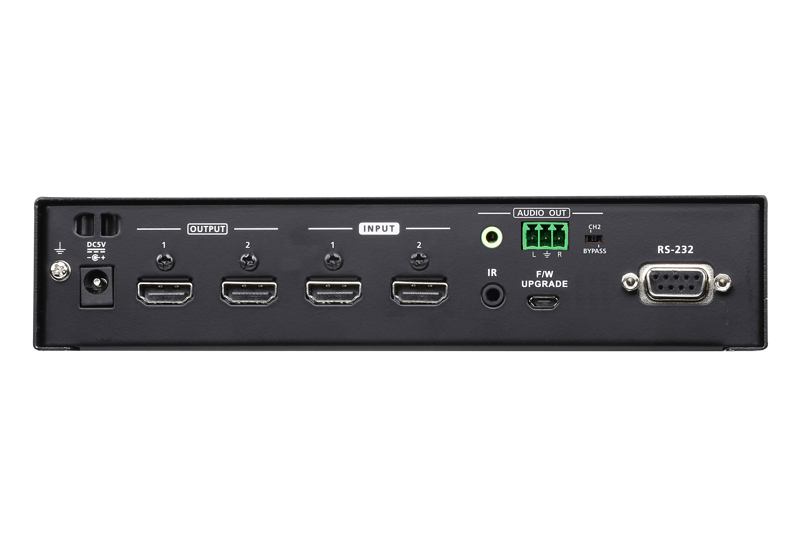

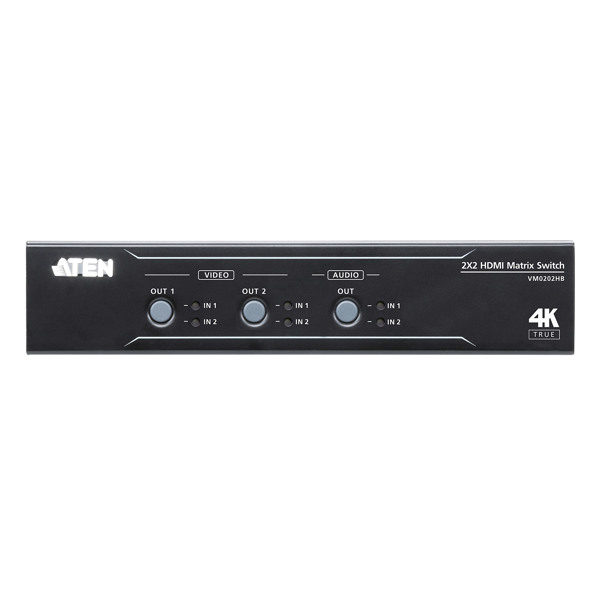

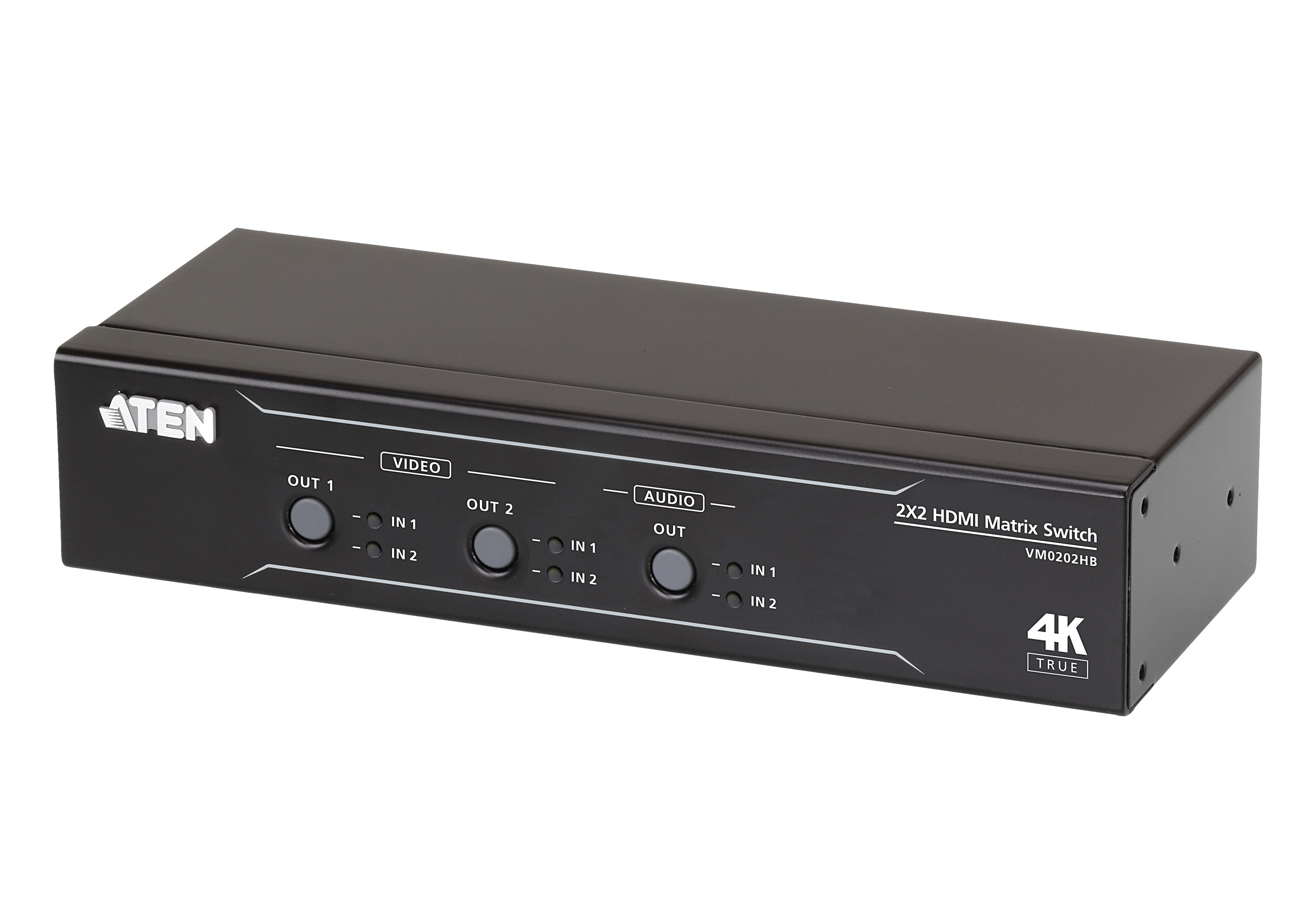

ATEN VM0202HB - Video/audio switch - VM0202HB-AT-G

ATEN VM0202HB - Video/audio switch - stationary, rack mountable
£ 170.00 Excluding VAT
£ 204.00 Incl. VAT
SKU: 10431751000
Condition: New
Stock status: (40+) In Stock
Guarantee: ATEN guarantees its hardware in the country of purchase against defects in materials and workmanship for a warranty period of two [2] years (the warranty period may vary in some regions/countries) starting on the original date of purchase. Learn More
Payment and shipping methods:

Got Questions? Click here to chat with our presales consultant and make the right purchase.


NOTE: The information below is provided for your convenience only, accuracy of specifications cannot be guaranteed. But if necessary, please verify with us before purchasing. Data provided by 1 World Sync

General
Product type
AV matrix switcher
Data transfer rate
18 Gbit/s
Maximum pixel clock
600 MHz
Housing colour
Black
Housing material
Metal
Control type
Buttons
USB connector type
Micro-USB
Power consumption (typical)
2.47 W
Products per master (outer) case
5 pc(s)
Master (outer) case gross weight
5.25 kg
Master (outer) case length
32.5 cm
Download Link

ATEN 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder. Product type: AV matrix switcher, Data transfer rate: 18 Gbit/s, Maximum pixel clock: 600 MHz. Housing colour: Black, Housing material: Metal, Control type: Buttons. USB connector type: Micro-USB. Power consumption (typical): 2.47 W. Products per master (outer) case: 5 pc(s), Master (outer) case gross weight: 5.25 kg, Master (outer) case length: 32.5 cm

https://www.atten.eu/

The VM0202HB is a 2 x 2 True 4K HDMI Matrix Switch featuring audio de-embedding. The VM0202HB offers an easy and affordable way to route True 4K high-definition HDMI video and audio. Supporting video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), HDR, audio de-embedder, and data rates up to 18 Gbps, the VM0202HB delivers robust signal routing and swift digital video/audio switching that is perfect for most AV applications.
1x VM0202HB 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder
1x JCNT-3301-103G 3-pole Terminal Block
1x 0AD8-1005-26M1 Power Adapter
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x Rack Mount Kit
1x User Instructions

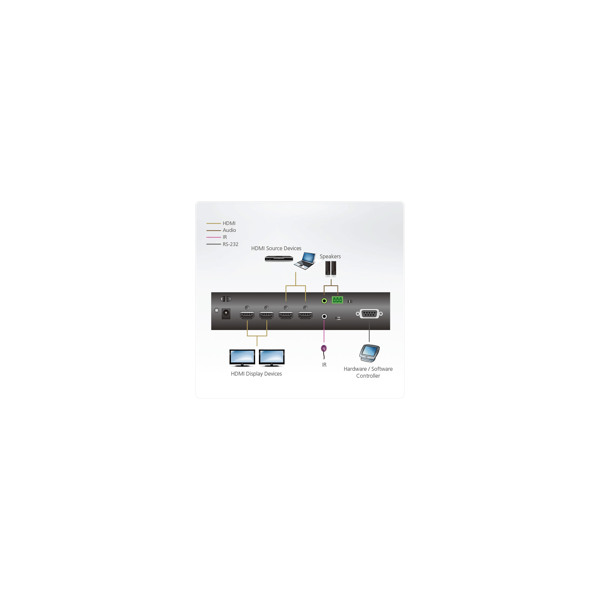

  • Connects 2 HDMI sources to any 2 HDMI displays
  • Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
  • EDID Expert Γ’β‚¬β€œ selects optimum EDID settings for smooth power-up,high-quality display and use of the best video resolution across different screens
  • Supports ATENÒ€ℒs Lock Pro HDMI cable lock for secure HDMI cable connections
  • All metal casing
  • Firmware upgradable
  • Rack mountable
  • Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane)
  • Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR
  • Audio de-embedder Γ’β‚¬β€œ HDMI audio can be extracted to stereo or Lineout audio
  • Supports Dolby True HD and DTS HD Master Audio
  • Auto switching Γ’β‚¬β€œ automatically detects and switches to a new source once connected (Default: off)
  • Multiple Control Methods Γ’β‚¬β€œ system management via front-panel pushbuttons, IR remote, and RS-232 serial control
  • Long-distance transmission up to 5 meters
  • HDMI (3D, 4K, Deep Color); HDCP 2.2 Compatible
