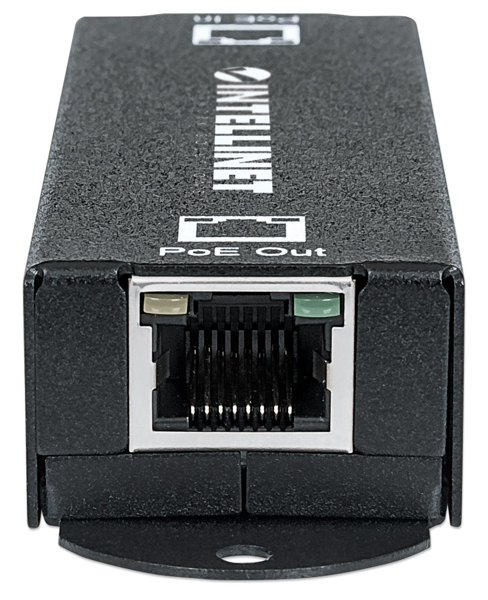

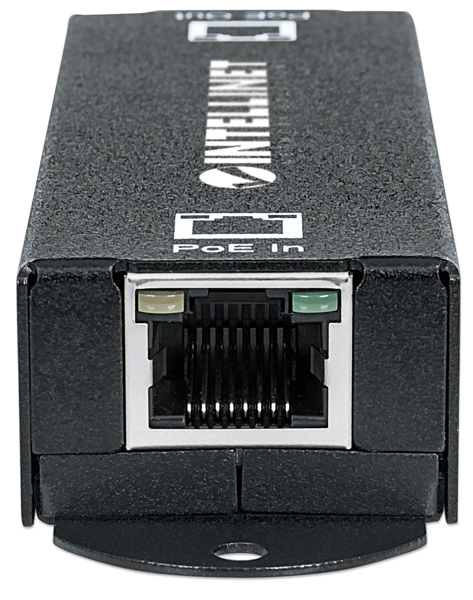

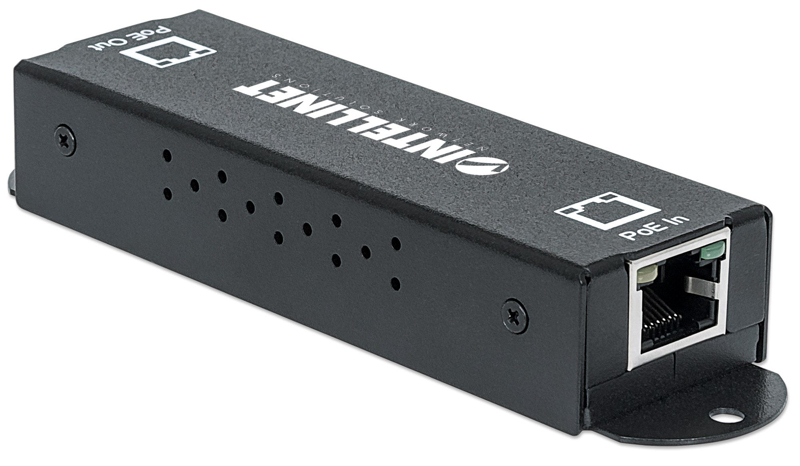

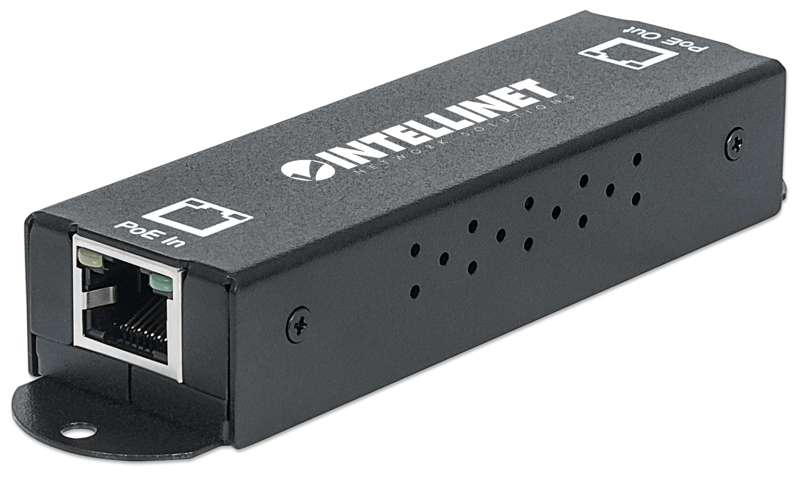

1-Port Gigabit High-Power PoE+ Extender Repeater - 560962

1-Port Gigabit High-Power PoE/PoE+ Extender Repeater - IEEE 802.3at/af - Metal - Repeater - 10Base-T, 100Base-TX, 1000Base-T - RJ-45 / RJ-45 - up to 500 m (560962)
£ 69.11 Excluding VAT
£ 82.93 Incl. VAT
Condition: New
Stock status: (77) In Stock
Guarantee: Learn More
+
-

03 Months Plan

You Will Pay £ 24.53 (Excluding VAT) per month.

06 Months Plan

You Will Pay £ 13.04 (Excluding VAT) per month.

12 Months Plan

You Will Pay £ 7.19 (Excluding VAT) per month.
Payment and shipping methods:

Got Questions? Click here to chat with our presales consultant and make the right purchase.


NOTE: The information below is provided for your convenience only, accuracy of specifications cannot be guaranteed. But if necessary, please verify with us before purchasing. Data provided by 1 World Sync

General
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u
Maximum operating distance
500 m
Product colour
Black
Certification
FCC, CE
Power over Ethernet (PoE)
Y
Power over Ethernet (PoE) voltage
48 V
Output power
24.6 W
Width
31 mm
Depth
102.8 mm
Height
20 mm
Number of products included
1 pc(s)
Download Link

Intellinet Gigabit High-Power PoE+ Extender Repeater, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), metal. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u. Maximum operating distance: 500 m, Product colour: Black, Certification: FCC, CE. Power over Ethernet (PoE) voltage: 48 V, Output power: 24.6 W. Width: 31 mm, Depth: 102.8 mm, Height: 20 mm. Number of products included: 1 pc(s)

https://intellinetnetwork.eu/catalogsearch/result/?q=560962



  • Extends an existing PoE connection beyond the 100m (328-ft.) limit
  • LEDs for PoE and data
  • Fanless design ideal for silent operation
  • Compact metal case
  • Mounting holes for wall mounting
  • ATTENTION: Not compatible to 16-Port Fast Ethernet PoE+ Switch model 560849
  • Three-Year Warranty
  • Saves time and money by delivering data and power via existing network cables
  • Covers longer distances by cascading multiple PoE extenders (Model 560962) together
  • Daisy-chain up to five PoE extenders for a distance of up to 600 m (1968 ft.)
  • Supports 10/100/1000 Mbps data rates and delivers up to 25 W to a connected PoE device
  • PoE awareness ensures that power is only sent to IEEE 802.3af/at-compliant devices, non-PoE devices only receive data
  • Requires no additional power supply; draws the power directly from the PoE input
  • Compatible to IEEE 802.3at/af-compliant PoE injectors and PoE switches (PSE)
  • Compatible to IEEE 802.3at/af-compliant powered devices (PD)

User Rating

0.00 average based on 0 reviews.

General
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u
Maximum operating distance
500 m
Product colour
Black
Certification
FCC, CE
Power over Ethernet (PoE)
Y
Power over Ethernet (PoE) voltage
48 V
Output power
24.6 W
Width
31 mm
Depth
102.8 mm
Height
20 mm
Number of products included
1 pc(s)
