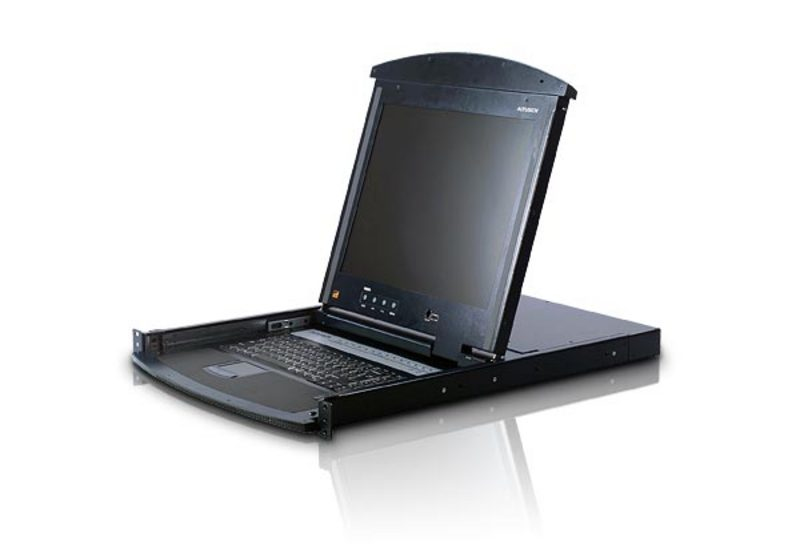

ATEN ALTUSEN KL1116 - KVM console - PS/2 - KL1116

Aten KL1116. Keyboard port type: PS/2, Mouse port type: PS/2, Video port type: VGA. Maximum resolution: 1280 x 1024 pixels, Scan interval: 1,255 s. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Display: LCD, Display diagonal: 43.2 cm (17"). AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Input current: 1 A

The KL1116 KVM Switch is a control unit that allows access to multiple computers from a single KVM (keyboard, monitor, and mouse), console. Before the development of the Master View, the only way to control multiple computer configurations from a single console was through a complex and costly network system. Now, with the KL1116, you can easily access multiple computers in a cost effective manner.

• Integrated KVM console with 17" LCD monitor in a Dual Rail housing
• Auto Scan Mode enables continuous monitoring of user-selected computers
• Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
• Two level password security - only authorized users can view and control the computers - up to four users plus an administrator with separate profiles for each
• Port selection via Pushbutton, Hotkey and OSD
• DDC emulation - video settings of each computer are automatically adjusted for optimal output to the monitor
• Hot pluggable - add or remove computers without having to power down the switch
• Firmware upgradable
• Super A-Grade TFT LCD Panel; Zero Dead Pixel Guarantee
• Multiplatform support: Windows 2000/XP/Vista, Linux, Unix and FreeBSD.
• For more information about KVMs which can connect to KL1116, see Compatible KVM Table
• Space saving technology - up to two consoles (one bus) control up to 16 computers
• More information about "Easy Rack Mounting"...
• Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
• Extra console port - manage computers in the LCD KVM switch from an external console (monitor, PS/2 keyboard, and PS/2 mouse)
• Dual Rail - LCD monitor slides independently of the keyboard/touchpad
• LCD module rotates up to 120 degrees for a more comfortable viewing angle
• Console lock - enables the console drawer to remain securely locked away in position when not in use
• Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions
• Daisy chain up to 31 additional KVM switches to control up to 512 computers
