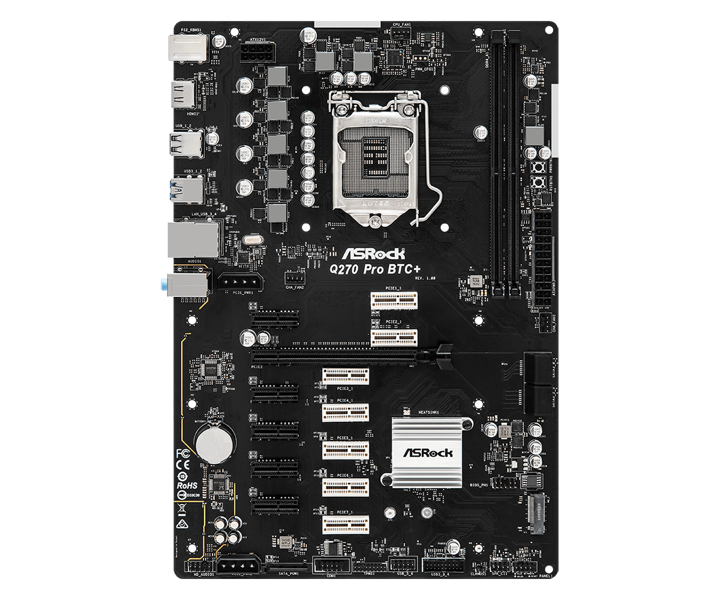

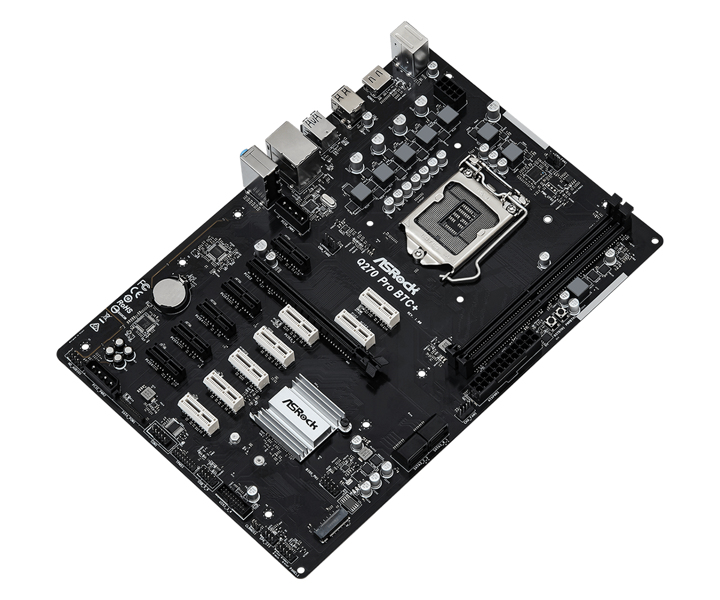

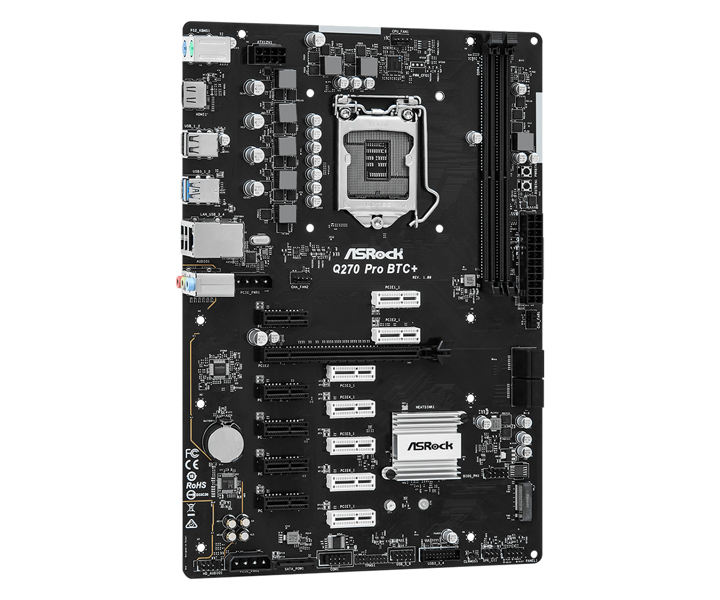

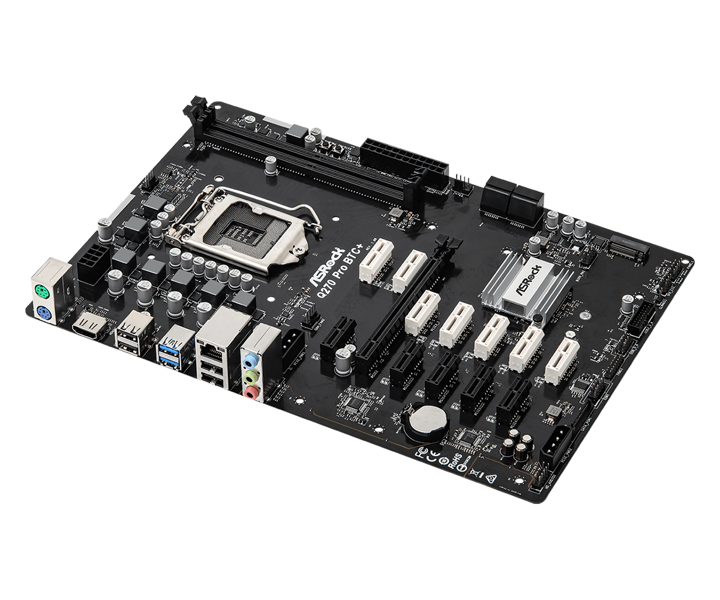

ASRock Q270 Pro BTC+ Intel® Q270 LGA 1151 (socket H4) ATX - 90-MXBHM0-A0UAYZ

Asrock Q270 Pro BTC+. Processor manufacturer: Intel, Processor socket: LGA 1151 (Socket H4), Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel® Pentium®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2,SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® I219-V. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

https://www.asrock.com/MB/Intel/Q270%20Pro%20BTC+/#Overview

Crypto Mining
This motherboard is specifically designed for mining, the revolutionary digital crypto-currency that may be used anywhere in the world. The abundant onboard PCIe slots guarantee fast Crypto mining, while the additional power connectors provide advanced system stability while mining.

M.2 For SSD
M.2 socket supports 2260/2280/22110 SATA3 mode M.2 SSD for up to 6Gb/s.

Smart PCIe State Detection
This motherboard has included a smart way to show the status of every graphics card. While the system is booting, the Power-On, Self-Test (POST) screen will show the status of the graphics cards that were installed on the motherboard.

Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Power On / Reset Button
Power On & Off system with onboard button is a must for open frame mining.

Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboardΓÇÖs components from being damaged by these unexpected voltage spikes.

• Supports 7th and 6th Generation Intel
• Onboard Power On / Reset Button
• CoreΓäó i5/i3/Pentium┬« /Celeron┬« Processors
• Supports DDR4 2400/2133 MHz
• 1 PCIe 3.0 x16, 12 PCIe 3.0 x1
• Graphics Output: HDMI
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• 4 SATA3, 1 M.2 (SATA3)
• 4 USB 3.2 Gen1 (2 Front, 2 Rear)
• Intel┬« Gigabit LAN
