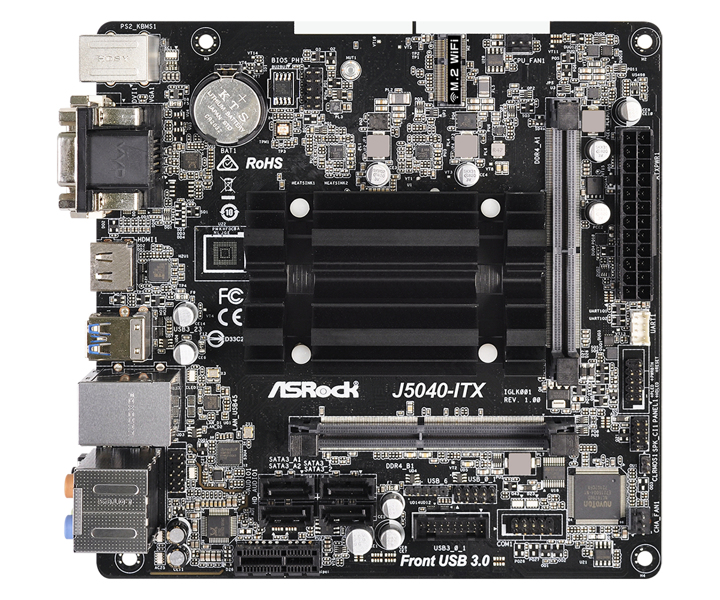

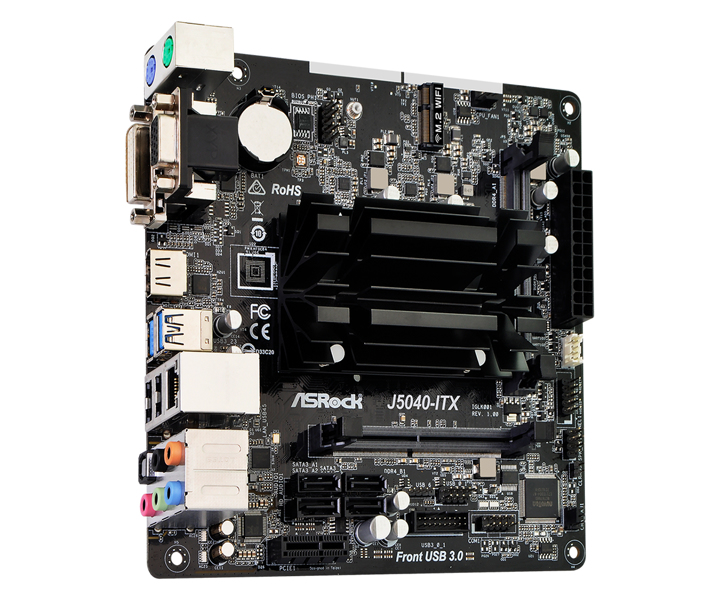

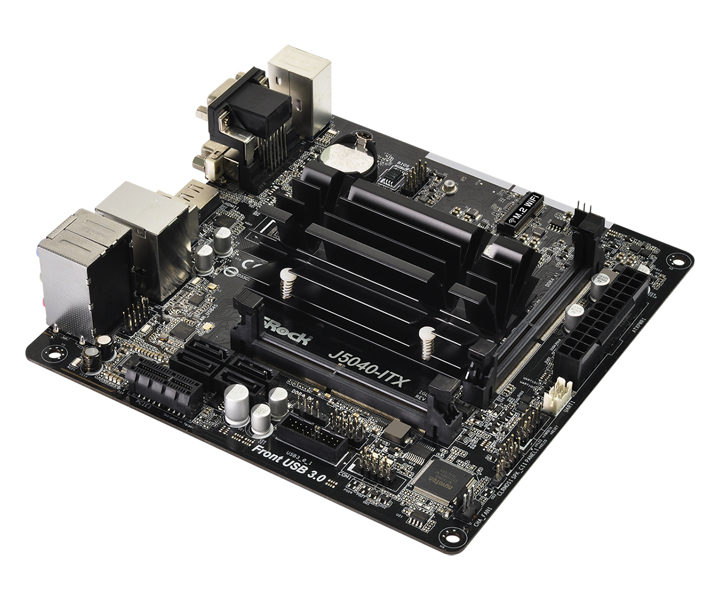

ASRock J5040-ITX - Intel - Intel® Pentium® - J5040 - DDR4-SDRAM - 90-MXBCD0-A0UAYZ

Asrock J5040-ITX. Processor manufacturer: Intel, Compatible processor series: Intel® Pentium®, Processor model: J5040. Supported memory types: DDR4-SDRAM, Memory slots type: DIMM, Supported memory clock speeds: 2133,2400 MHz. Maximum resolution: 4096 x 2160 pixels. Component for: PC, Audio output channels: 7.1 channels, Audio chip: Realtek ALC892. BIOS type: UEFI AMI, BIOS memory size: 128 Mbit

https://www.asrock.com/mb/Intel/J5040-ITX/index.asp

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

HEVC 10-bit Decoding/Encoding
Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Supports DDR4 SO-DIMMs
Supports the latest DDR4 SO-DIMM memory modules and most extreme memory performance!

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.

ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboardΓÇÖs components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

• ASRock Super Alloy
• Intel Quad-Core Pentium Processor J5040 (up to 3.2 GHz)
• Supports DDR4 2133/2400 SO-DIMM
• 1 PCIe 2.0 x1, 1 M.2 (Key E)

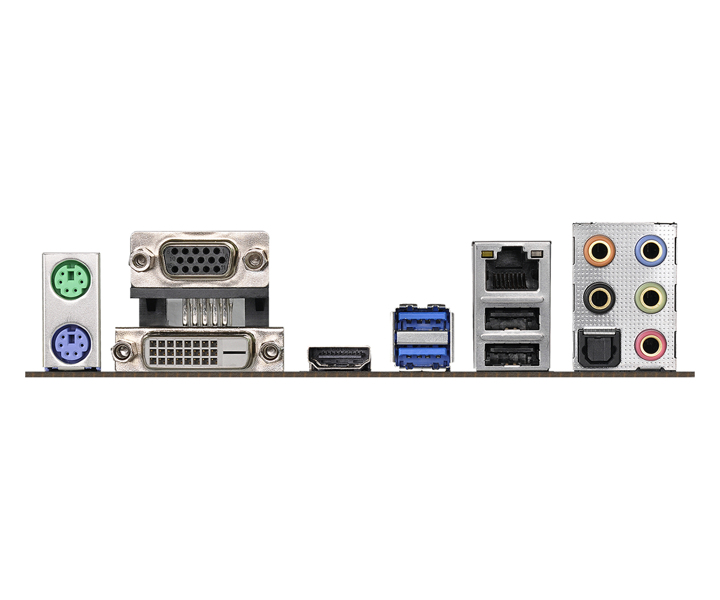

• Graphics Output Options: D-Sub, HDMI, DVI-D
• 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
• 4 SATA3
• 4 USB 3.2 Gen1 (2 Front, 2 Rear)
• Supports Full Spike Protection, ASRock Live Update & APP Shop
