NOTE: The information below is provided for your convenience only, accuracy of specifications cannot be guaranteed. But if necessary, please verify with us before purchasing. Data provided by 1 World Sync
General
Temperature measurement units
F,°C
Temperature measurement range
-20 - 200 °C
Low frequency range
10 - 1000 Hz
High frequency range
4000 - 20000 Hz
Severity levels
Good,Satisfactory,Unacceptable,Unsatisfactory
Battery technology
Lithium-Ion (Li-Ion)

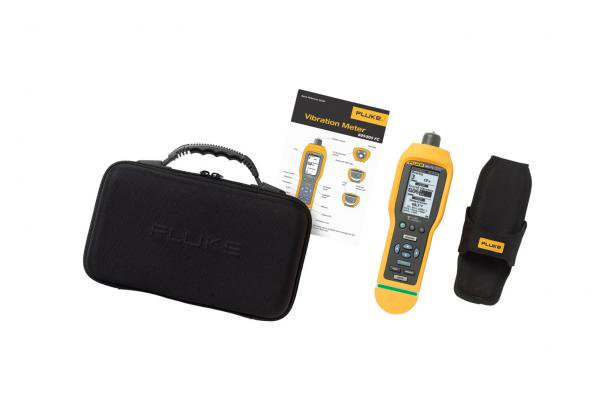

Fluke 805 FC. Control type: Button, Temperature measurement units: F,°C, Temperature measurement range: -20 - 200 °C. Low frequency range: 10 - 1000 Hz, High frequency range: 4000 - 20000 Hz, Severity levels: Good,Satisfactory,Unacceptable,Unsatisfactory. Battery technology: Lithium-Ion (Li-Ion), Battery type: AA. Width: 71 mm, Depth: 58 mm, Height: 241 mm. Cables included: USB
https://www.fluke.com/en-us/product/mechanical-maintenance/vibration-analysis/fluke-805-fc
- Reliable, repeatable, accurate device for checking bearings and overall vibration
- Provides Crest Factor+ technology for reliable bearing assessment using direct sensor tip measurements between 4,000 Hz and 20,000 Hz

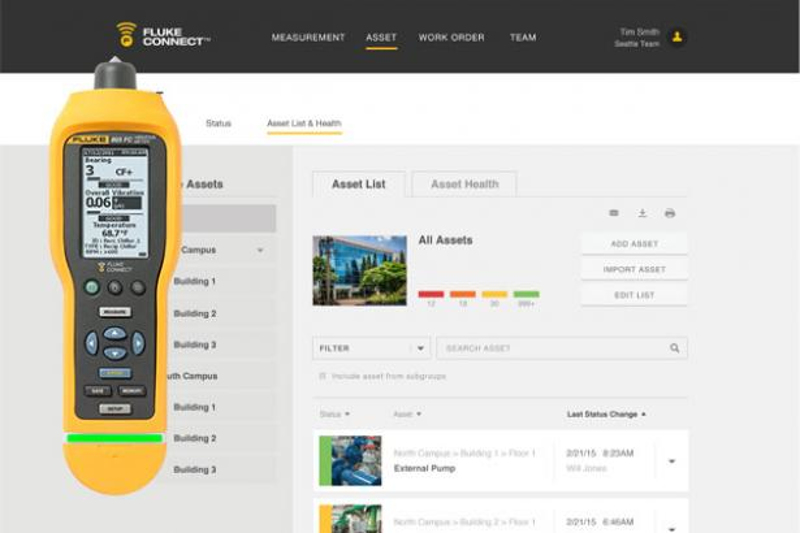

- Compares vibration levels with ISO-10816 severity scales and stores results to the Fluke Connect Cloud
- Features colored lighting system (green, red) and on-screen comments to indicate how much pressure needs to be applied to take measurements
- Measures temperature with Spot IR Sensor to increase diagnostic capabilities
- Holds and saves up to 3,500 measurements in on-board memory
- External accelerometer (optional) support for hard to reach locations
- Features built-in flashlight for viewing measurement locations in dark areas
- Provides large high-resolution display for easy navigation and viewing
- Features innovative sensor design that minimizes measurement variations caused by device angle or contact pressure
- Provides consistent data quality at both low and high frequency ranges
- Offers four-level severity scale to assess urgency of problems and bearing condition
- Allows you to export data via USB or wirelessly, through the Fluke Connect® mobile app

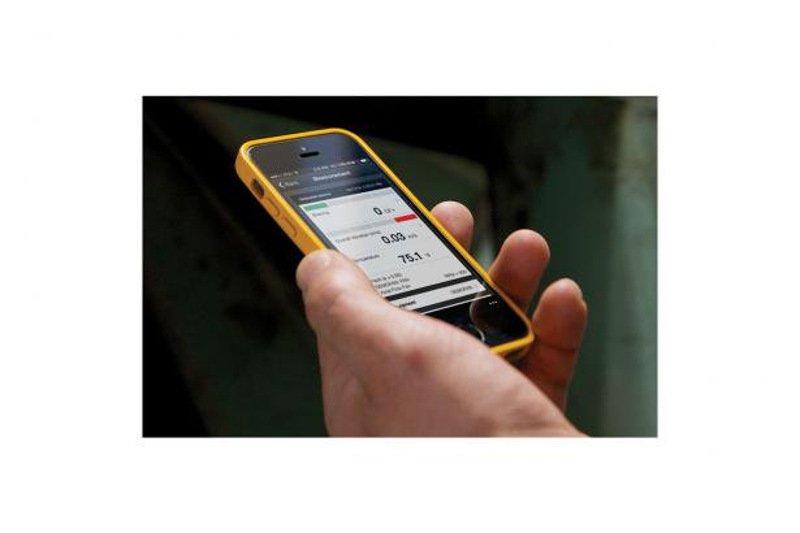

- Compatible with Fluke Connect® Mobile App that can transmit measurements to your smartphone to be shared in real time
- Enables you to get authorization to take next steps in an instant if machine health is at risk via Fluke ConnectΓäó mobile app*

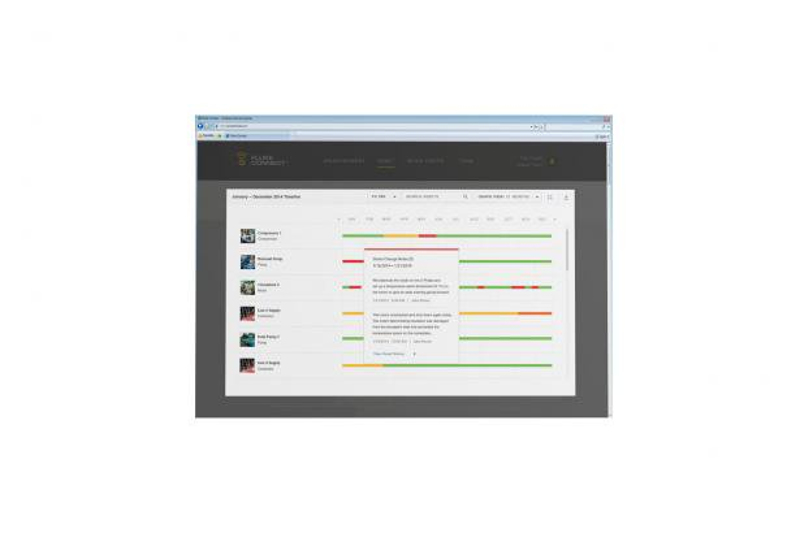

- Allows you to view trending in Microsoft® Excel using pre-built templates
- Measures overall vibration (10 Hz to 1,000 Hz) for acceleration, velocity, and displacement units of measurement for a wide variety of machines
