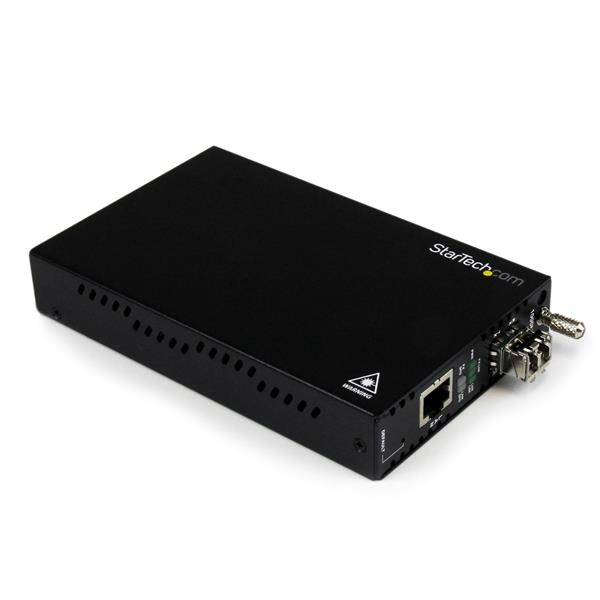

StarTech OAM Managed Gigabit Ethernet Fiber Media Converter MM LC 550.0m- Fiber media converter - 1000Base-LX, 1000Base-SX, 1000Base-TX, 1000Base-T - RJ-45 / LC Multi-Mode - 850 nm (ET91000LCOAM)
Multimode (MM) LC Fiber Media Converter with SFP - OAM Management - 802.3ah Compliant - Gigabit Ethernet - 550m - 850nm (ET91000LCOAM)
Brand: StarTech.com
SKU: ET91000LCOAM
£0.00
Price excl. VAT
£0.00
Price incl. VAT
Out of stock
Do you have any question about this product? Click here to contact our pre-sales consultant and make the right purchase.
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Maximum data transfer rate
1250 Mbit/s
Converter input interface
1000Base-LX,1000Base-SX,1000Base-T,100Base-TX,10Base-T
Converter output interface
1000Base-LX,1000Base-SX
Fiber optic connector
LC
Connectivity technology
Wired
Maximum transfer distance
550 m
Wavelength
850 nm
Fiber mode structure
Multi-mode
LED indicators
LAN,Link,Power
Product colour
Black
Housing material
Steel
Input voltage
100 - 240 V
Input current
0.36 A
Output voltage
12 V
StarTech.com OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant. Maximum data transfer rate: 1250 Mbit/s, Converter input interface: 1000Base-LX,1000Base-SX,1000Base-T,100Base-TX,10Base-T, Converter output interface: 1000Base-LX,1000Base-SX. Fiber optic connector: LC, Connectivity technology: Wired. Maximum transfer distance: 550 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. LED indicators: LAN,Link,Power, Product colour: Black, Housing material: Steel. Input voltage: 100 - 240 V, Input current: 0.36 A, Output voltage: 12 V
| Estimate Gross Weight | 0.789 |
|---|
https://se.startech.com/product/ET91000LCOAM
Convert and extend a Gigabit Ethernet connection over Multimode LC fiber with remote management capabilities
The ET91000LCOAM Managed Fiber Media Converter lets you extend a Gigabit Ethernet connection over Multimode LC fiber, with the added benefit of remote management capabilities.
Compliant with 802.3ah OAM (Operations, Administration & Management), this managed media converter incorporates an easy-to-use web interface for operation, administration and maintenance, enabling you to quickly determine the location of failing links and the fault conditions without sending service personnel to the physical location of the device.
An effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the Ethernet to fiber converter supports full Gigabit speeds at distances of up to 550m (1804ft) through the installed Multi-Mode LC SFP. The converter also features an all-steel chassis, for durability in harsh environments.
For added versatility, this fiber media converter supports standalone operation, or installation into the ETCHS2U" text="20 Slot, 2U Rackmount Chassis(ETCHS2U), as well as a replaceable MSA-compliant SFP slot.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Adjust settings and monitor the link remotely with OAM management capabilities
- Operates as standalone device or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
Convert and extend a Gigabit Ethernet connection over Multimode LC fiber with remote management capabilities
The ET91000LCOAM Managed Fiber Media Converter lets you extend a Gigabit Ethernet connection over Multimode LC fiber, with the added benefit of remote management capabilities.
Compliant with 802.3ah OAM (Operations, Administration & Management), this managed media converter incorporates an easy-to-use web interface for operation, administration and maintenance, enabling you to quickly determine the location of failing links and the fault conditions without sending service personnel to the physical location of the device.
An effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the Ethernet to fiber converter supports full Gigabit speeds at distances of up to 550m (1804ft) through the installed Multi-Mode LC SFP. The converter also features an all-steel chassis, for durability in harsh environments.
For added versatility, this fiber media converter supports standalone operation, or installation into the ETCHS2U" text="20 Slot, 2U Rackmount Chassis(ETCHS2U), as well as a replaceable MSA-compliant SFP slot.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Adjust settings and monitor the link remotely with OAM management capabilities
- Operates as standalone device or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
