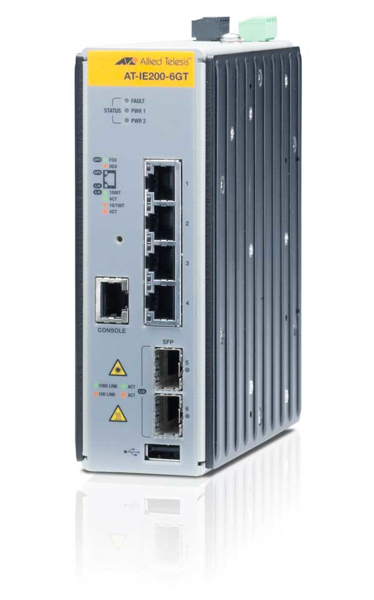

Allied Telesis AT-IE200-6GT-80 - Managed Switch
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Switch type
Managed
Switch layer
L2
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
4
USB 2.0 ports quantity
1
Console port
RJ-45
MAC address table
2000 entries
Switching capacity
12 Gbit/s
Networking standards
IEEE 802.1Q,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3u,IEEE 802.3x
Power connector
DC-in jack
Allied Telesis AT-IE200-6GT. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 2000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1Q,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE.... Power connector: DC-in jack
The Allied Telesis IE200 Series of industrial switches is a cost-effective solution that meets the high reliability requirements demanded by industrial applications. The units can be easily managed through Web GUI, SNMP, Telnet, or SSH while the fiber ports extend the connection distance, increasing the network elasticity and performance.
The IE200 Series provides Ethernet Protection Switched Ring (EPSRing) resilient functionality that can prevent network connection failure. With the wide operating temperature range of between -40° and 75°C, IE200 Series switches can be deployed in the harshest industrial environments.
- Performance
- Securing the network edge
- Gigabit and fast Ethernet support
- High network resiliency
- AlliedWare Plus feature-rich operating system
- USB port for image/configuration backup, restore, and upgrade
- Redundant power inputs for higher system reliability
- Advanced Ethernet Protection Switched Ring (EPSRing) (RFC3619) to reduce network impact
- STP, RSTP, MSTP, and EPSR for better redundancy
- Superior security mechanism including SSL, SSH, 802.1X, MAC, IP filtering, RADIUS, TACACS+, and VLAN for access protection
- IPv6 management for up-to-date requirements
- Performance
The IE200 Series of high performance and cost-effective industrial managed switches meets the high reliability requirements of industrial network operations. These industrial switches provide network managers with several key features, using the simple web- based management function, such as port-based VLANs. IEEE 802.1p QoS. porttrunking/link aggregation, port mirroring, priority queues, and IEEE 802. Ix security support With support of up to 4K MAC addresses, the IE200 Series of switches is an ideal option for integrating management into any network solution. - Securing the network edge
To ensure data protection, it is important to control network access. Protocols such as IEEE 802.lx port- based authentication guarantee that only known users are connected to the network. Unknown users who physically connect can be segregated into a pre-determined part of the network, offering guests such benefits as Internet access, while ensuring the integrity of private network data. - Gigabit and fast Ethernet support
The IE200 Series SFP ports support both Gigabit and Fast Ethernet Small Form-factor Performance Pluggables. This makes the IE200 Series switches ideal for environments where Ggabit fiber switches will be phased in over time. This allows for connectivity to the legacy I00FX hardware until it is upgraded to Gigabit Ethernet. - High network resiliency
IE200 Series industrial switches support the EPSRing protocol that can help the network to recover from connection failure within 50ms or less, thus making the network system highly resilient The EPSR is a carrier-class algorithm, and its recovery time is much faster than STP. In addition, Dual Homing and Double Ring Topology are also supported, further increasing network availabiity.
| Estimate Gross Weight | 1.38 |
|---|
The Allied Telesis IE200 Series of industrial switches is a cost-effective solution that meets the high reliability requirements demanded by industrial applications.
The units can be easily managed through Web GUI, SNMP, Telnet, SSH, or Allied Telesis Management FrameworkΓäó (AMF).
The AMF is a suite of features that combine to simplify network management across all supported network equipment from the core to the edge; AMF provides simplified device recovery and firmware upgrade management.
The IE200 Series with AlliedWare PlusΓäó provides Ethernet Protection Switched Ring (EPSRingΓäó) resilient functionality that can prevent network connection failure. With the wide operating temperature range of between -40┬░ and 75┬░C, IE200 Series switches can be deployed in any of the harshest industrial environments.
The AT-IE200-6GT supports up to 2K MAC addresses and 12Gbps of wired speed switching, so that is ideal for network solution requiring high throughput at the edge.
