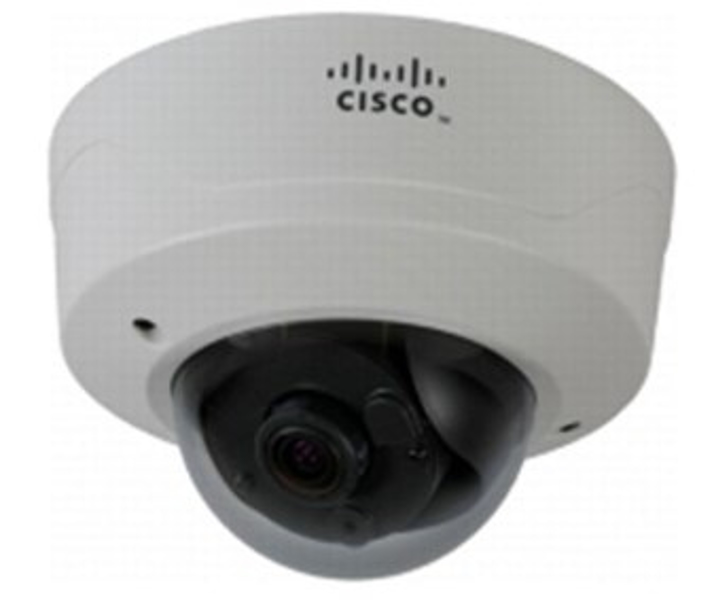

CIVS-IPC-6020 Cisco Video Surveillance IP Camera, Indoor HD Dome
1/2.7" CMOS - 69 dB - 0.5 lux - Pan: 350° - Tilt: 80° - Rotate: 350° - 30 fps - 1920 x 1080 - MicroSD card slot
Brand: Cisco Systems
SKU: CIVS-IPC-6020
£0.00
Price excl. VAT
£0.00
Price incl. VAT
Out of stock
Do you have any question about this product? Click here to contact our pre-sales consultant and make the right purchase.
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Type
IP security camera
Placement supported
Indoor & outdoor
Connectivity technology
Wired
Form factor
Dome
Mounting type
Ceiling/wall
Product colour
Black, White
Minimum illumination
0.5 lx
Angle of rotation
350 °
Tilt angle range
0 - 80 °
Sensor type
CMOS
Optical sensor size
25.4 / 2.7 mm
Maximum resolution
1920 x 1080 pixels
Video formats supported
H.264,M-JPEG
Supported graphics resolutions
160 x 90,320 x 192,640 x 368,768 x 432,960 x 540,1024 x 576 (WSVGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080)
Cisco Surveillance 6020 IP. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Form factor: Dome, Mounting type: Ceiling/wall, Product colour: Black, White. Minimum illumination: 0.5 lx, Angle of rotation: 350°, Tilt angle range: 0 - 80°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Maximum resolution: 1920 x 1080 pixels, Video formats supported: H.264,M-JPEG, Supported graphics resolutions: 160 x 90,320 x 192,640 x 368,768 x 432,960 x 540,1024 x 576 (WSVGA),1280 x 720 (HD 720),1920 x...
https://www.cisco.com/c/en/us/products/collateral/physical-security/video-surveillance-6000-series-ip-cameras/data_sheet_c78-714744.html
The Cisco® Video Surveillance 6020 IP Camera is a high-definition, full-functioned video endpoint with industry-leading image quality and processing power. The camera is capable of full 1080p resolution at 30 frames per second (fps) while optimizing network usage with either H.264 or MJPEG compression. Contact closures allow integration with access control systems. With its open, standards-based design, the camera provides an ideal platform for integration and operation as an independent device or as part of a Cisco Video Surveillance network.
The Cisco Video Surveillance 6020 IP Camera offers a variety of benefits, including:
- True high-definition video: The camera streams crisp and clear 1080p (1920 x 1080) (2.1 megapixel) video at 30 fps while maintaining low network bandwidth.
- Motorized focus and zoom: The lens on the 6020 IP CameraΓÇÖs dome allows the focus and zoom to be controlled remotely, greatly simplifying installations and field of view adjustments.
- Dual streaming: The camera can stream H.264 and MJPEG video simultaneously. Each video stream can be configured with individual resolution, quality, and frame-rate settings.
- Day/night operation: The camera provides true day/night functionality and includes an infrared filter that automatically switches to night mode in low-light scenes. This function can be set to manual, automatic, or scheduled control.
- Privacy regions: The camera supports up to four user-defined privacy regions. Any video within a privacy region is masked in the video stream.
- Local storage: Video data can automatically be recorded to a microSD card when the camera loses networkconnectivity.
- Bidirectional audio: The camera supports full-duplex audio and options for half-duplex operation.
- Open API. Support for ONVIF 2.0 allows for standards based interoperability and communications with other ONVIF appliances.
- Flexible power options: The camera supports Power over Ethernet (PoE) 802.3af, 12 VDC, or 24 VAC power through an optional external power supply.
- Medianet support: The camera supports the Cisco Medianet interface. When connected to a Cisco switch that also supports Medianet, the switch recognizes the camera as a video endpoint and then uses SmartPort macros to set the right network parameters for the video stream on the network. In addition, the camera can be automatically discovered and configured when connected to Cisco Video Surveillance Manager 7.0, thereby minimizing installation time and cost.
The Cisco® Video Surveillance 6020 IP Camera is a high-definition, full-functioned video endpoint with industry-leading image quality and processing power. The camera is capable of full 1080p resolution at 30 frames per second (fps) while optimizing network usage with either H.264 or MJPEG compression. Contact closures allow integration with access control systems. With its open, standards-based design, the camera provides an ideal platform for integration and operation as an independent device or as part of a Cisco Video Surveillance network.
The Cisco Video Surveillance 6020 IP Camera offers a variety of benefits, including:
- True high-definition video: The camera streams crisp and clear 1080p (1920 x 1080) (2.1 megapixel) video at 30 fps while maintaining low network bandwidth.
- Motorized focus and zoom: The lens on the 6020 IP CameraΓÇÖs dome allows the focus and zoom to be controlled remotely, greatly simplifying installations and field of view adjustments.
- Dual streaming: The camera can stream H.264 and MJPEG video simultaneously. Each video stream can be configured with individual resolution, quality, and frame-rate settings.
- Day/night operation: The camera provides true day/night functionality and includes an infrared filter that automatically switches to night mode in low-light scenes. This function can be set to manual, automatic, or scheduled control.
- Privacy regions: The camera supports up to four user-defined privacy regions. Any video within a privacy region is masked in the video stream.
- Local storage: Video data can automatically be recorded to a microSD card when the camera loses networkconnectivity.
- Bidirectional audio: The camera supports full-duplex audio and options for half-duplex operation.
- Open API. Support for ONVIF 2.0 allows for standards based interoperability and communications with other ONVIF appliances.
- Flexible power options: The camera supports Power over Ethernet (PoE) 802.3af, 12 VDC, or 24 VAC power through an optional external power supply.
- Medianet support: The camera supports the Cisco Medianet interface. When connected to a Cisco switch that also supports Medianet, the switch recognizes the camera as a video endpoint and then uses SmartPort macros to set the right network parameters for the video stream on the network. In addition, the camera can be automatically discovered and configured when connected to Cisco Video Surveillance Manager 7.0, thereby minimizing installation time and cost.
