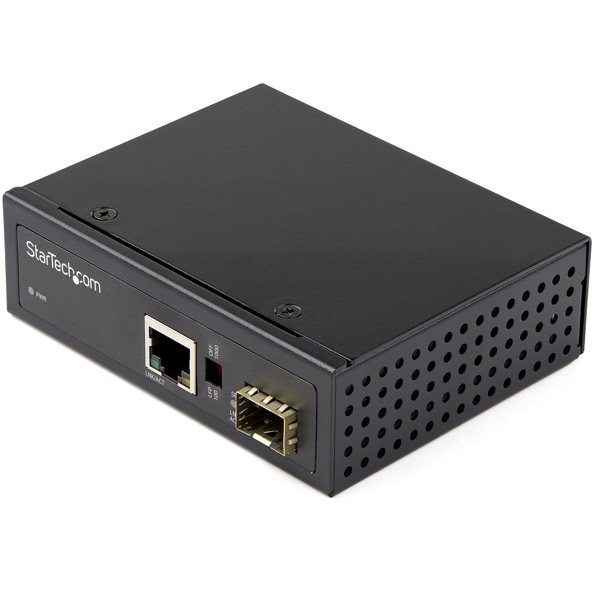

Industrial Media Converter 1Gbps Fiber to Copper
(IMC1GSFP)
Brand: StarTech.com
SKU: IMC1GSFP
£240.21
Price excl. VAT
£288.25
Price incl. VAT
Available – In Stock
Do you have any question about this product? Click here to contact our pre-sales consultant and make the right purchase.
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Maximum data transfer rate
1000 Mbit/s
Networking standards
IEEE 802.3,IEEE 802.3x
Duplex system
Full
Fiber optic connector
SFP
Connectivity technology
Wired
Fiber mode structure
Multi-mode, Single-mode
Mean time between failures (MTBF)
569265 h
Product colour
Black
Housing material
Aluminium
International Protection (IP) code
IP30
Input voltage
12 - 56 V
Power plug type
Type N
StarTech.com Industrial Fiber to Ethernet Media Converter - 1Gbps SFP to RJ45/ Cat6 - Singlemode/Multimode Optical Fiber to Copper Gigabit Network - 12-56V DC - IP-30/ -40 to +75C. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3,IEEE 802.3x, Duplex system: Full. Fiber optic connector: SFP, Connectivity technology: Wired. Fiber mode structure: Multi-mode, Single-mode, Mean time between failures (MTBF): 569265 h. Product colour: Black, Housing material: Aluminium, International Protection (IP) code: IP30. Input voltage: 12 - 56 V, Power plug type: Type N
| Estimate Gross Weight | 0.39 |
|---|
https://www.startech.com/en-us/IMC1GSFP

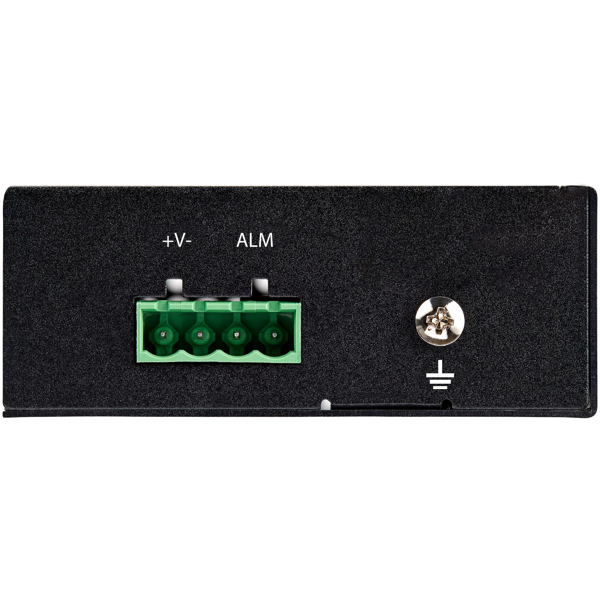

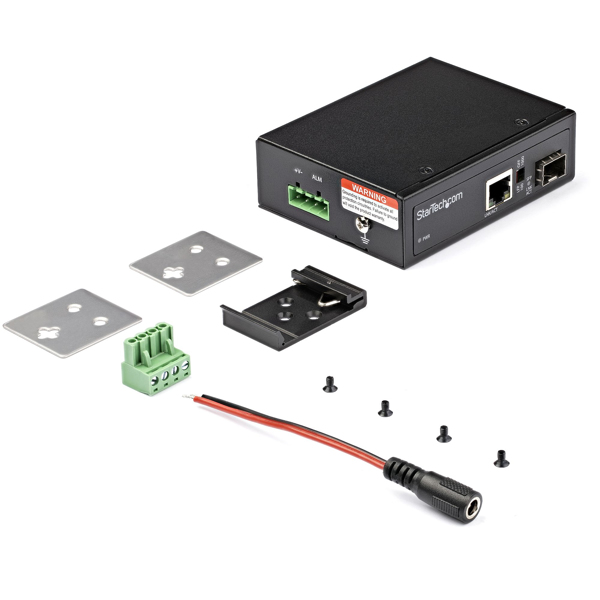

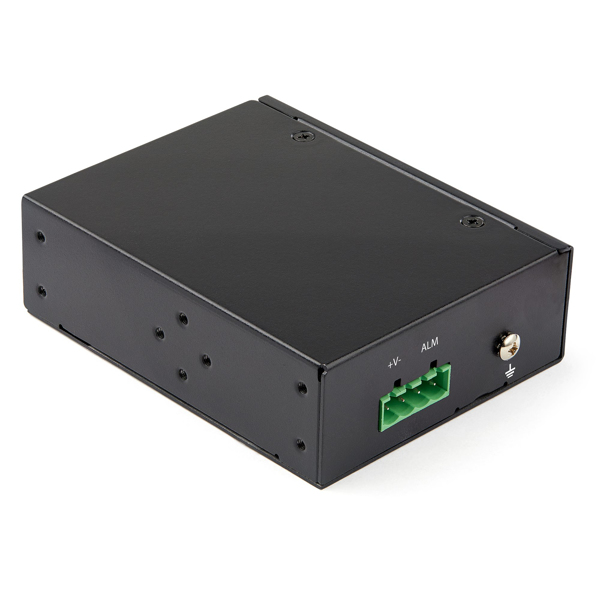

Gigabit Media Converter | SFP to RJ45 (Cat6) | MTBF: 500,000+hrs @ 50┬░C | 12V-56VDC | Works with 100 Mbps SFPsAn industrial media converter that converts fiber to copper at a network endpoint.A Flexible Solution Covering Different RequirementsThis media converter features an open SFP slot for any standard gigabit SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 12V-56V DC for solar, automotive, rail, and other applications and requires a minimum 12V power input. Includes hardware for DIN rail or wall mounting.For Mission-Critical ApplicationsDesigned with IP-30 housing and has an MBTF of >500;000 hrs (Telcordia/Bellcore) at 50┬░C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:ΓÇó Vibration: EN 60068-2-6ΓÇó Shock: EN 60068-2-27ΓÇó Free-Fall: EN 60068-2-32The IMC1GSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage
Gigabit Media Converter | SFP to RJ45 (Cat6) | MTBF: 500,000+hrs @ 50┬░C | 12V-56VDC | Works with 100 Mbps SFPsAn industrial media converter that converts fiber to copper at a network endpoint.A Flexible Solution Covering Different RequirementsThis media converter features an open SFP slot for any standard gigabit SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 12V-56V DC for solar, automotive, rail, and other applications and requires a minimum 12V power input. Includes hardware for DIN rail or wall mounting.For Mission-Critical ApplicationsDesigned with IP-30 housing and has an MBTF of >500;000 hrs (Telcordia/Bellcore) at 50┬░C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:ΓÇó Vibration: EN 60068-2-6ΓÇó Shock: EN 60068-2-27ΓÇó Free-Fall: EN 60068-2-32The IMC1GSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage
- INDUSTRIAL FIBER TO ETHERNET MEDIA CONVERTER: Extends & converts 1Gbps fiber to RJ45 copper w/ hardened operating temp -40C to 75C; powered by 12V-56V DC for compatibility with solar, auto & rail
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; this media converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support

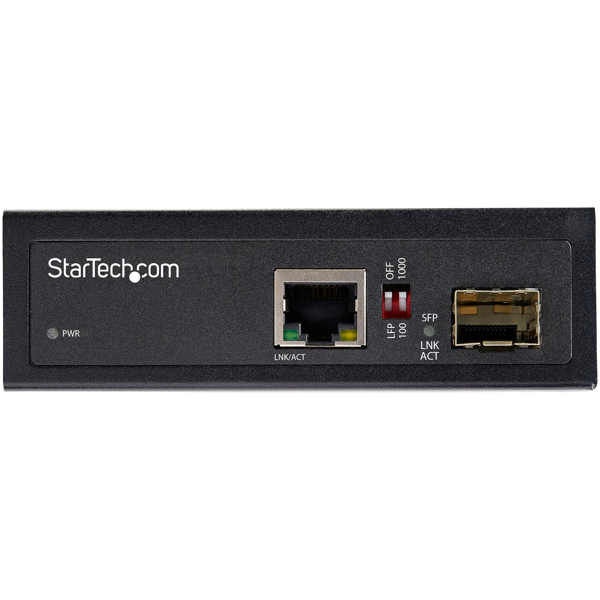

- OPEN SFP SLOT: Compatible with any standard SFP and can be used for multimode or single mode fiber connections; easy deployment across applications, fiber distances or fiber cable types
- ROBUST DESIGN: Industrial Gigabit Network Media Converter w/MTBF of 500,000+ hrs @ 50C / Vibration, shock & free fall rated / Rugged IP-30 aluminum housing
- TECH SPECS: 10/100/1000 Mbps / 12V-56VDC / Single Mode SMF & Multi-Mode MMF Fiber / 16K Jumbo Frames / LFP / IP-30 Housing / DIN or Wall Mountable / Terminal Block and/or Barrel Adapter for power redundancy
