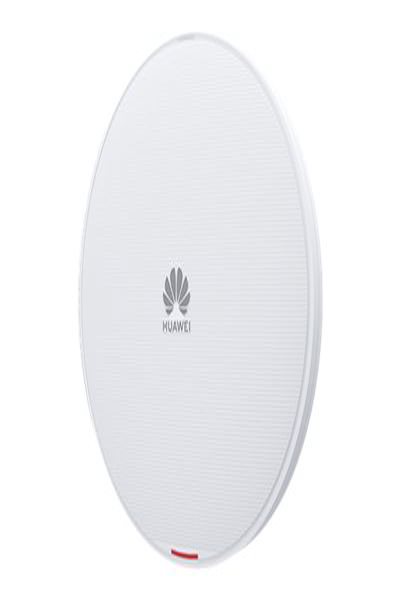

Huawei AirEngine 5761-11 WiFi6
indoor,2+2 dual bands - smart antenna - USB - BLE
Brand: Huawei
SKU: 02353VUR
£213.51
Price excl. VAT
£256.21
Price incl. VAT
Out of stock
Do you have any question about this product? Click here to contact our pre-sales consultant and make the right purchase.
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Device Type
Radio access point
Ruggedized Design
Indoor
Width
22 cm
Depth
22 cm
Height
5 cm
Weight
1.05 kg
Networking
Form Factor
External
Connectivity Technology
Wireless
Data Transfer Rate
1.775 Gbps
Line Coding Format
1024 QAM, OFDMA
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Network / Transport Protocol
NTP, DNS, SFTP, HTTP, HTTPs, IPv6, Telnet
Routing Protocol
GRE
Remote Management Protocol
SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH-2, Web NMS, SFTP, STelnet, NTP, RADIUS
Cloud-Managed
Yes
Frequency Band
2.4 GHz, 5 GHz
Performance
Maximum data rate (2.4 GHz): 575 Mbps
Maximum data rate (5 GHz): 1.2 Gbps
Capacity
Maximum number of configured SSIDs: 16
Maximum number of users: 1024
Status Indicators
Status
Features
NAT support, Wi-Fi Multimedia (WMM) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), hidden SSID, Dynamic ARP Inspection (DAI), LLDP support, Maximum Ratio Combining (MRC), CAPWAP support, Low Density Parity Check (LDPC), DHCP client, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), cyclic shift diversity (CSD), Unscheduled Automatic Power Save Delivery (U-APSD), IP source guard, beamforming technology, protected management frames, MAC address authentication, Dynamic Frequency Selection (DFS), Signal Sustain Technology (SST), Extended Service Set (ESS), 2x2 MU-MIMO technology, Short Guard Interval, IPv6 Source Address Validation Improvements (SAVI), Target Wait Time (TWT), Spectrum Analysis, High Density Boost technology, SmartRadio, Media Dependent Interface (MDI), Media Dependent Interface Crossover (MDI-X), mDNS
Encryption Algorithm
AES, 128-bit WEP, 64-bit WEP, 154-bit WEP, TKIP, WPA, WPA2, WPA-PSK, WPA2-PSK, WEP, WAPI, WPA3, Simultaneous Authentication of Equals (SAE), WPA3-SAE, 192-bit WEP
Authentication Method
RADIUS, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Compliant Standards
IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11h, IEEE 802.11e, IEEE 802.11k, IEEE 802.3at, IEEE 802.11w, IEEE 802.11r, IEEE 802.11v
Aerial
Antenna
Internal
Internet of Things (IoT)
Internet of Things (IoT) Compatible
Yes
Communications Technology
RFID, Zigbee
Expansion / Connectivity
Interfaces
1 x 1000Base-T (PoE+) - RJ-45
1 x USB
Miscellaneous
Compliant Standards
CISPR 24, EN55022, ICES-003, IEC 61000-4-2, IEC 61000-4-6, EN55024, CISPR 22, RSS-210, RSS-102, FCC Part 15, FCC Part 2, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, GB 4943, GB 17625.1, Directive 2002/95/EC, Directive 2011/65/EU, GB 9254, AS/NZS CISPR 22, ITU-T K.20, WEEE 2002/96/EC, WEEE 2012/19/EU, EN 301 489-1, EN 62368-1, IEC 62368-1, ETSI EN 300 328, ETSI EN 301 893, UL 62368-1, OET 65, CENELEC EN 50385, CENELEC EN 62311, ETSI EN 60601-1-2, Directive 1907/2006/EC, EN 301 489-17, YD/T 1312.2-2004, FCC Part 1, FCC KDB, CAN/CSA C22.2 No. 60950-1
Power
Power Over Ethernet (PoE) Supported
PoE+
Power Device
External power adapter
Voltage Required
DC 12 V
Power Consumption Operational
15.3 Watt
Environmental Parameters
Min Operating Temperature
10 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Ident
Manufacturer ID
02353VUR
EAN/UPC
6901443433612
Huawei AirEngine 5761-11 - 1775 Mbit/s - 10,100,1000 Mbit/s - IEEE 802.11a - IEEE 802.11ac - IEEE 802.11ax - IEEE 802.11b - IEEE 802.11g - IEEE 802.11n - 1024 user(s) - Multi User MIMO - SSH-2 - WPA - WPA2 - WPA2-PSK - WPA3 - indoor,2+2 dual bands - smart antenna - USB - BLE
