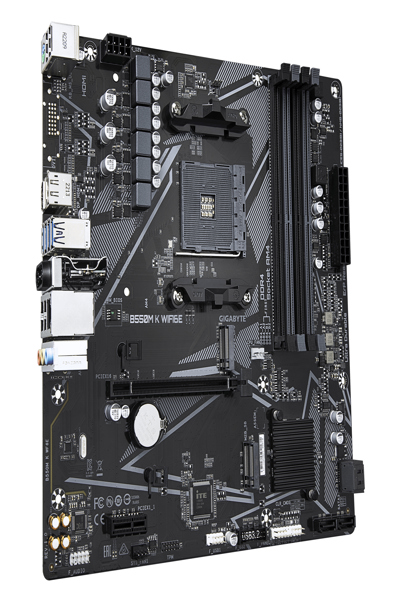

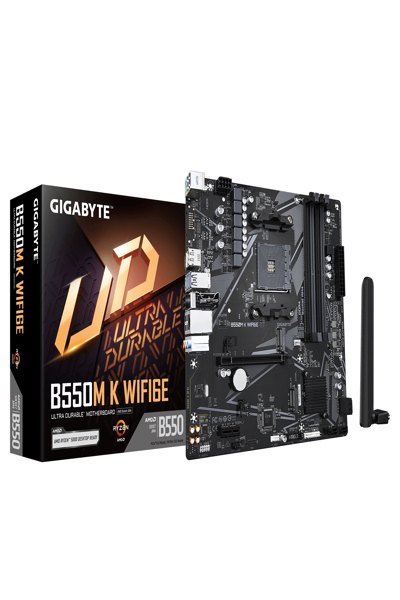

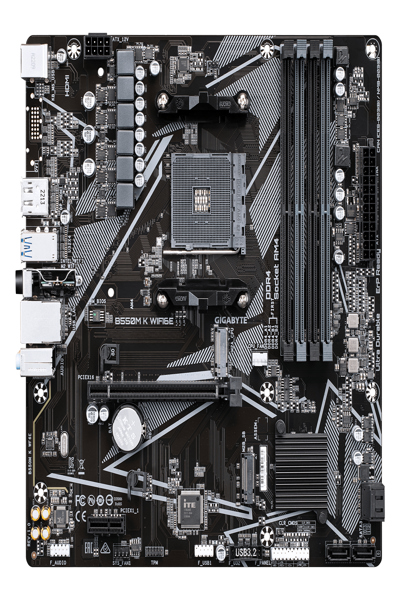

Gigabyte Motherboard Gigabyte GIGABYTE B550M K WIFI6E AMD B550 Socket AM4 micro ATX
Brand: Gigabyte
SKU: B550M K WF6E
£111.02
Price excl. VAT
£133.22
Price incl. VAT
Out of stock
Do you have any question about this product? Click here to contact our pre-sales consultant and make the right purchase.
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
Processor
Processor manufacturer
AMD
Processor socket
Socket AM4
Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Supported processor sockets
Socket AM4
Memory
Supported memory types
DDR4-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dodeca-channel
ECC ?ompatibility
ECC & Non-ECC
Supported memory clock speeds
4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Supported memory clock speed (max)
4733 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Maximum internal memory per slot
32 GB
Features
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Product colour
Dark brown
PC health monitoring
Fan, Temperature, Voltage
Cooling type
Passive
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Internal I/O
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
1
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
1
TPM connector
Yes
12V power connector
Yes

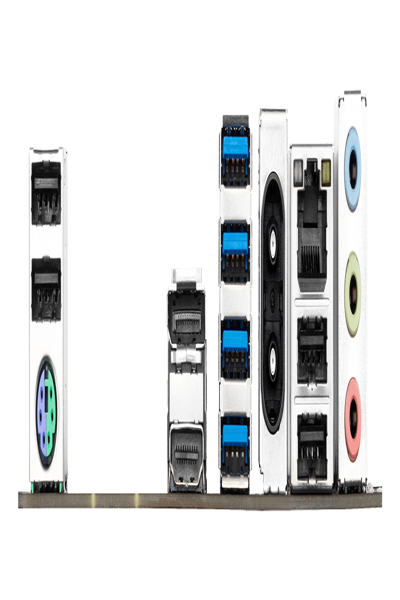

Rear panel I/O ports
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Ethernet LAN (RJ-45) ports
1
PS/2 ports quantity
1
VGA (D-Sub) ports quantity
0
HDMI ports quantity
1
HDMI version
2.1
DVI-D ports quantity
0
DisplayPorts quantity
1
DisplayPort version
1.4
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
WiFi-AP antenna jack
2
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA
Number of HDDs supported
2
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 10
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet, Fast Ethernet
LAN controller
Realtek RTL8111H
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model
MediaTek MT7902
Bluetooth
Yes
Bluetooth version
5.3
BIOS
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Expansion slots
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
3.0
Graphics
Parallel processing technology support
Not supported
Maximum resolution
5120 x 2880 pixels
HDCP
Yes
HDCP version
2.3
DirectX version
12.0
Weight & dimensions
Width
244 mm
Depth
244 mm
Height
35 mm
Other features
Weight
940 g
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Packaging content
Batteries included
Yes
Antenna included
Yes
Screws included
Yes
Bundled software
Norton® Internet Security (OEM version)
Technical details
Warranty period
3 year(s)
Battery
Battery weight
3 g
Lithium weight per battery
0.0700 g
Number of battery cells
1
Battery capacity
220 mAh
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
270 mm
Package depth
268 mm
Package height
68 mm
Package weight
1.02 kg
Ident
Manufacturer ID
B550M K WF6E
EAN/UPC
4719331880811
