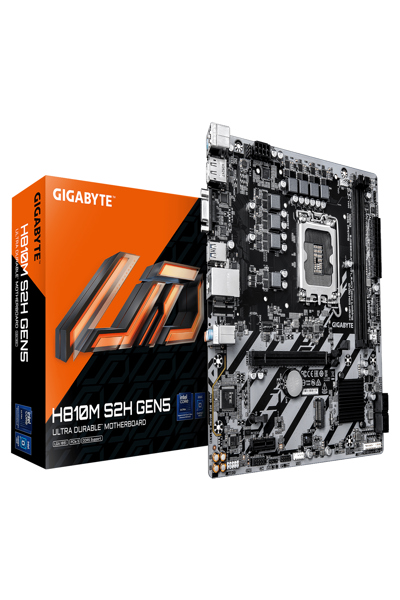

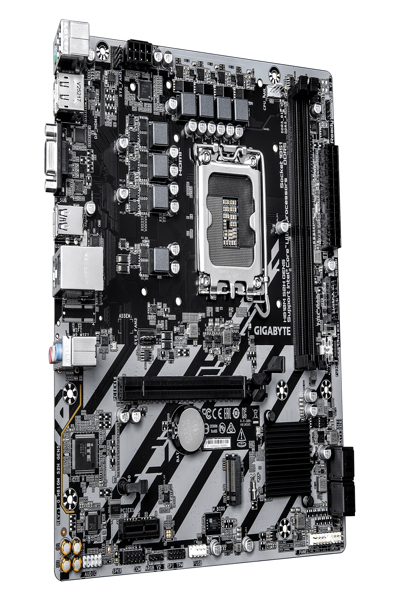

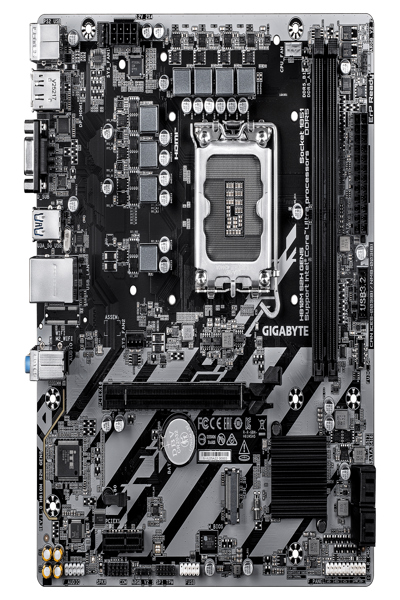

Gigabyte Motherboard - Intel Core Ultra Series 2 Cpus 4+1+2 - Motherboard - Intel Sockel 1851 (Core Ultra 100&200)
H810 - ATX - 128 GB - DDR5 - DIMM - SATA - USB 3.2 - USB 3.0 - USB 3.0 - SATA - PCI
Brand: Gigabyte
SKU: H810M S2H GEN5
£124.51
Price excl. VAT
£149.41
Price incl. VAT
Available – In Stock
Do you have any question about this product? Click here to contact our pre-sales consultant and make the right purchase.
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
Processor
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Compatible processor series
Intel Core Ultra (Series 2)
Supported processor sockets
LGA 1851
Memory
Supported memory types
DDR5-SDRAM
Number of memory slots
2
Memory slots type
DIMM
Memory channels
Dual-channel
ECC ?ompatibility
ECC & Non-ECC
Supported memory clock speeds
5600,6400 MHz
Supported memory clock speed (max)
6400 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Maximum internal memory per slot
64 GB
Features
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Motherboard chipset
Intel H810
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Product colour
Dark brown
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Cooling type
Passive
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Internal I/O
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
1
TPM connector
Yes
Serial port headers
1
RGB LED pin header
Yes
Number of RGB LED pin headers
2

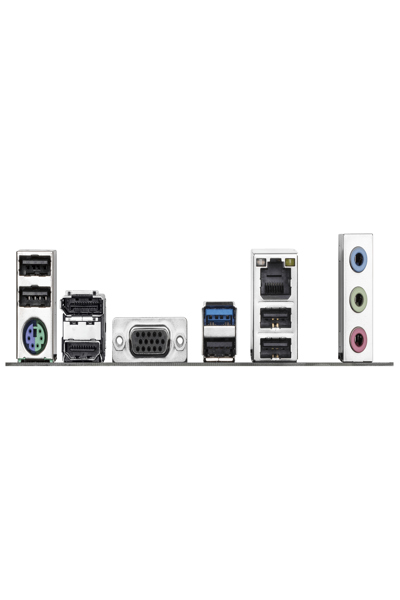

Rear panel I/O ports
USB 2.0 ports quantity
5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Ethernet LAN (RJ-45) ports
1
PS/2 ports quantity
1
VGA (D-Sub) ports quantity
1
HDMI ports quantity
1
HDMI version
2.1
DVI-D ports quantity
0
DisplayPorts quantity
1
DisplayPort version
2.1
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Number of HDDs supported
4
Number of storage drives supported
5
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
LAN controller
Realtek RTL8111H
Wi-Fi
No
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Expansion slots
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
1
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
4.0
Graphics
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
HDCP version
2.3
DirectX version
12.0
Weight & dimensions
Width
244 mm
Depth
215 mm
Height
35 mm
Other features
Weight
790 g
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Packaging content
Batteries included
Yes
Screws included
Yes
Bundled software
Norton® Internet Security (OEM version)
Technical details
Warranty period
3 year(s)
Battery
Battery weight
3 g
Lithium weight per battery
0.0700 g
Number of battery cells
1
Battery capacity
220 mAh
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
265 mm
Package depth
265 mm
Package height
54 mm
Package weight
872.4 g
Ident
Manufacturer ID
H810M S2H GEN5
EAN/UPC
4719331880057
