NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
Technical data
General
Device Type
Radio access point
Ruggedized Design
Indoor
Built-in Devices
GPS, GNSS receiver
Width
25.1 cm
Depth
25.1 cm
Height
5.1 cm
Weight
1.87 kg
Processor / Memory / Storage
RAM
4096 MB
Flash Memory
16 GB
Networking
Form Factor
External
Connectivity Technology
Wireless
Data Transfer Rate
18 Gbps
Line Coding Format
4096 QAM, OFDMA
Data Link Protocol
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Bluetooth LE
Spread Spectrum Method
OFDMA
Frequency Band
2.4 GHz, 5 GHz, 6 GHz
Capacity
Spatial streams: up to 16
Status Indicators
Status
Features
4x4:4 MU-MIMO technology, Multi-Link Operation (MLO), preamble puncturing, Target Wake Time (TWT), BSS Coloring, Maximum Ratio Combining (MRC), packet aggregation A-MPDU, packet aggregation A-MSDU, Dynamic Frequency Selection (DFS), cyclic shift diversity (CSD), beamforming technology, 802.1x authentication, uplink/downlink MU-MIMO, image signing, secure boot, Cisco Trust Anchor module, Maximal Ratio Combining, LLDP support, band steering, quad-radio mode, Integrated Ultra-Wideband (UWB), Flexible Radio Assignment (FRA)
Encryption Algorithm
WPA3, WPA2, 256-bit SHA, AES, 128-bit AES-GCMP, 256-bit AES-GCMP, EAP-TLS, EAP-TTLS, PEAP, EAP-MSCHAPv2, EAP-FAST, PEAPv1, EAP-GTC, EAP-SIM, MSCHAPv2
Authentication Method
MS-CHAP, MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM
Compliant Standards
IEEE 802.11, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3, IEEE 802.3ab, IEEE 802.11h, IEEE 802.11d, IEEE 802.11i, IEEE 802.1x
Aerial
Antenna
Internal
Directivity
Omni-directional
Internet of Things (IoT)
Internet of Things (IoT) Compatible
Yes
Expansion / Connectivity
Interfaces
2 x 100M/1G/2.5/5/10 Gigabit Ethernet (UPOE) - RJ-45
1 x management - RJ-45
1 x USB 2.0
Miscellaneous
Compliant Standards
IEC 60950-1, IEC 62368-1 Third Edition, EN 60950-1, EN 62368-1 Third Edition, UL 60950-1, UL 62368-1 Third Edition, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1 Third Edition, AS/NZS 60950-1, AS/NZS 62368-1 Third Edition, UL 2043, Class 3, CISPR 32:2015+AMD1:2019, EN 55032:2015/A11:2020, EN IEC 61000-3-2:2019/A1:2021, EN 61000-3-3:2013+A1:2019, AS/NZS CISPR32:2015+AMD1:2020, FCC 47 CFR part 15 B class B, ICES-003 issue 7 Class B, VCCI-CISPR 32:2016, CNS 13438 (2006), KS C 9832:2019, QCVN 118:2018/BTTTT, EN 55035:2017+A11:2020, KS C 9835:2019, EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09), QCVN 18:2014, QCVN 112:2017/BTTTT, KS X 3124:2020, KS X 3126:2020, EN 61000-6-1:2019, EN 60601-1-2:2015 + A1:2021, EN 300 328, EN 301 893, EN 303 687, AS/NZS 4268, FCC CFR 47 Part 15C, RSP-100, RSS-GEN, RSS-247, LP0002, Japan Std. 66, Japan Std. 71, EN 50385:2017, AS/NZS 2772:2016, 47 CFR Part 2.1091, RSS-102, WEEE
Power
Power Over Ethernet (PoE) Supported
UPOE
Power Device
External power adapter / power injector (not included)
Software / System Requirements
OS Required
Cisco IOS XE 17.15.2 or later
Manufacturer Warranty
Service & Support
Limited warranty - replacement - lifetime - response time: 5 days
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% (non-condensing)

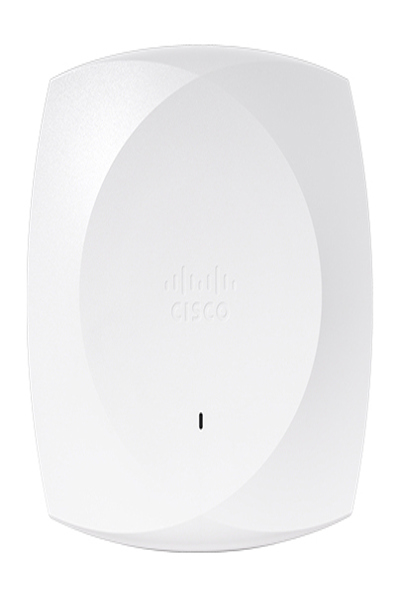

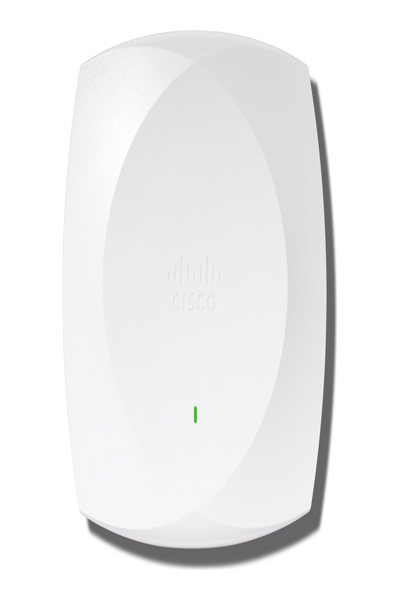

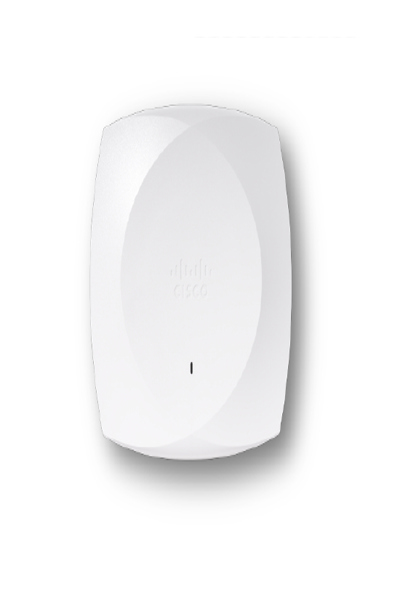

Cisco Wireless 9178I - Configurable - radio access point - with quad-radio mode - Wi-Fi 7, 2.5GbE, 5GbE, 10GbE - Wi-Fi 7, Bluetooth - 2.4 GHz, 5 GHz, 6 GHz
Cisco 9178 Series CW9178I-CFG. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 24000 Mbit/s. Security algorithms: EAP, WPA2, WPA3. Ethernet LAN data rates: 100,1000,2500,5000,10000 Mbit/s. Power over Ethernet (PoE). Product colour: White
The Cisco Wireless 9178I offers performance for your indoor wireless access needs. With a ruggedized design and the capacity to support up to 16 spatial streams, this device is engineered to deliver reliable connectivity in various environments. Equipped with 16 GB flash memory and 4 GB RAM, it ensures smooth operations for multiple devices without compromising speed. The internal omnidirectional antenna provides coverage, while dual management interfaces and a USB 2.0 port simplify networking administration. Additionally, this model is IoT-compatible, making it a versatile solution for modern connectivity demands.
With advanced features, the Cisco Wireless 9178I maximizes data transfer rates, achieving up to 18 Gbps throughput. It incorporates multiple encryption algorithms, ensuring security for your network. The integration of beamforming technology and MU-MIMO capabilities enhances wireless performance, allowing simultaneous data transmission to multiple devices. This device is built to withstand operating temperatures from 0°C to 50°C and comes with various compliance certifications, showcasing its reliability and adherence to safety standards.
Product overview
Cisco's Wi-Fi 7 access points power the next generation of wireless experiences, designed to revolutionize connectivity and digital experiences. Offering unprecedented speeds, enhanced security, and resilient connectivity, these products are ideal for high-density environments and critical applications. They seamlessly integrate into your existing network, whether on-premises, cloud-based, or hybrid, providing flexible deployment options to suit various organizational needs.
The Cisco® Wireless Wi-Fi 7 access points enable transformative user experiences. Enterprises can leverage the predictability and low latency of Wi-Fi 7 to support better video streaming, augmented reality (AR), and virtual reality (VR) applications. By connecting people and things within physical spaces, Cisco's wireless solutions with Wi-Fi 7 offer real-time insights and actions such as indoor navigation and personalized user experiences.
Create differentiated customer experiences, accelerate digital business transformation, and prepare networks for the future with Cisco's Wi-Fi 7 solutions. With faster data transfer rates, reduced network congestion, and simplified network management with AI-driven insights and automation, the Cisco Wireless 9178 Series Access Points provide the foundation for the future of wireless.
- Supports up to 16 spatial streams for enhanced performance
- Ruggedized design suitable for indoor environments
- Fast data transfer rate of 18 Gbps
- IoT-compatible for versatile connectivity
- Multiple built-in security protocols ensuring data protection
- Robust connectivity options
Provides dual management interfaces along with USB 2.0 and multiple Gigabit Ethernet ports for flexible and efficient connectivity solutions. - Advanced security measures
Incorporates a variety of encryption algorithms, including WPA2 and WPA3, to safeguard your network against unauthorized access. - High-performance capabilities
Utilizes beamforming technology and 4x4:4 MU-MIMO technology to enhance signal strength and quality, ensuring reliable connections for multiple devices. - Environmentally robust design
Operates efficiently within a wide temperature range and supports humidity levels of 10 to 90%, catering to diverse indoor environments. - Compliance with multiple standards
Meets numerous international safety and performance standards, ensuring reliability and compatibility within various deployment scenarios.
