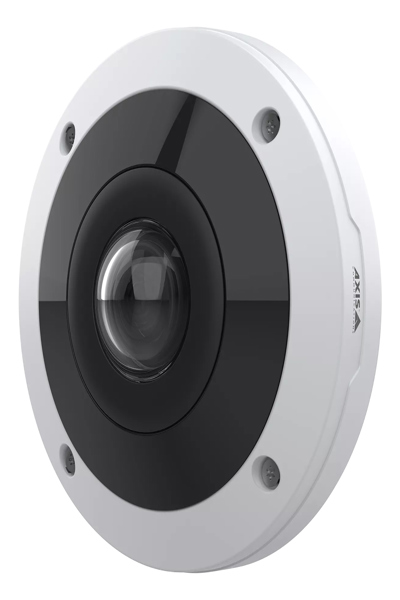

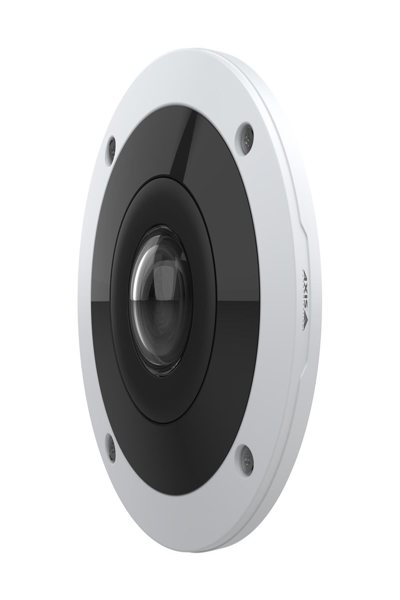

Axis M43 Series M4318-PLR - Network Camera
12 MP
Brand: Axis
SKU: 02834-001
£1,014.51
Price excl. VAT
£1,217.41
Price incl. VAT
Available – In Stock
Do you have any question about this product? Click here to contact our pre-sales consultant and make the right purchase.
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Device Type
Network panoramic camera
Audio Support
Yes: two-way audio capability
Form Factor
Fisheye
Connectivity Technology
Wired
Width
14.9 cm
Depth
14.9 cm
Height
7 cm
Weight
860 g
Camera
Type
Colour - Day&Night - fixed - outdoor - vandal / weatherproof
Digital Video Format
MJPEG, H.264, H.265
Max Digital Video Resolution
2992 x 2992
Motion Detection
Yes
Exposure Range
0.5 sec - 1/8100 sec
Minimum Illumination
0.19 lux - colour - F2.2 - 50 IRE
0.04 lux - B&W - F2.2 - 50 IRE
Infrared LEDs
Yes
Infrared Distance
15 m
Digital Video Capture Resolution
3840 x 2160, 2992 x 2992, 160 x 160, 192 x 72, 3584 x 2688, 512 x 288, 384 x 288, 2048 x 1536, 256 x 144, 3200 x 1200, 2880 x 2880, 2560 x 1920
Frame Rate (max)
30 frames per second
RAM
2 GB
Flash Memory
8 GB
Features
Sharpdome technology, 360° panoramic capture, 180° panoramic view mode, IR Corrected lens, infrared cut filter, digital roll, deep learning processing unit (DLPU), Wide Dynamic Range (WDR), Zipstream technology, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), Adaptive Bitrate (ABR), brightness control, compression, contrast control, day/night threshold, digital PTZ function, dynamic text overlay, exposure mode, exposure zone, Forensic WDR, image mirror, image overlay, Lightfinder technology, Multi-Bitrate (MBR), OptimizedIR, polygon privacy mask, saturation control, sharpness control, tone mapping, Variable Bitrate (VBR), white balance, AXIS Object Analytics, human detection, Line Crossing Detection, object stops in area detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Vehicle Detection, Face Recognition, vehicle colour recognition, active tampering alarm, NAS-Ready, aluminium housing, polycarbonate housing
Image Sensor
Type
12 MP PS RGB CMOS 1/2.3"
Lens Construction
Type
Fixed focal
Focal Length
1.2 mm
Lens Iris
F/2.2 fixed iris
Focus Adjustment
Fixed focus
Horizontal Field of View (degree)
182
Vertical Field of View (degree)
182
Interfaces
Network Interface
Ethernet 10Base-T/100Base-TX
Network Protocols
IPv4, IPv6, USGv6, ICMP, HTTPS, HTTP, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, MDNS, Bonjour, UPnP, SNMP, DNS, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, RTCP, DHCP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf
Alarm Inputs Qty
1
Alarm Outputs Qty
1
Expansion / Connectivity
Ports
LAN/power - RJ-45
Supported Memory Cards
microSD Card, microSDHC Card, microSDXC Card
Encryption Algorithm
EAP-TLS, PEAP, MSCHAPv2, TLS 1.2, TLS 1.3
Miscellaneous
Included Accessories
Terminal block connector, connector guard, cable gaskets, cable hole lid, owner authentication key
TAA Compliant
Yes
Compliant Standards
IEEE 802.1x, IEEE 802.1ar, CSA, UL, cUL, BIS, UKCA, KC, AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 62368-1 Third Edition, ECE R10 Rev.06, EN 50121-4, EN 50155, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, EN 61547, ETSI EN 303 645, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 62236-4, IEC TR 60721-4-5 Class 5M3, IEC/EN 60529 IP66, IEC/EN 61373 Category 1 Class B, IEC/EN 62262 IK10, IEC/EN 62471, IEC/EN/UL 62368-1, IS 13252, ISO 21207 method B, ISO 4892-2, KS C 9832 Class A, KS C 9835, NEMA TS-2 (2.2.7-2.2.9), NEMA250 Type 4X, NIST SP500-267, RCM, UN ECE R118, VCCI Class A, IEEE 802.3af, IEEE 802.3at, BFR-free, CFR free, PVC-free, JEDEC, ECA, EN 63000:2018, REACH 1907/2006/CE, RoHS 2011/65/EU
Colour
White, NCS S 1002-B
Power
Power Requirements
DC 12 V / PoE
Power Device
6.4 watt
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
40 °C
Max Operating Temperature
50 °C
Relative Humidity (operating)
10 - 100% RH (condensing)
Ident
Manufacturer ID
02834-001
EAN/UPC
7331021085060
