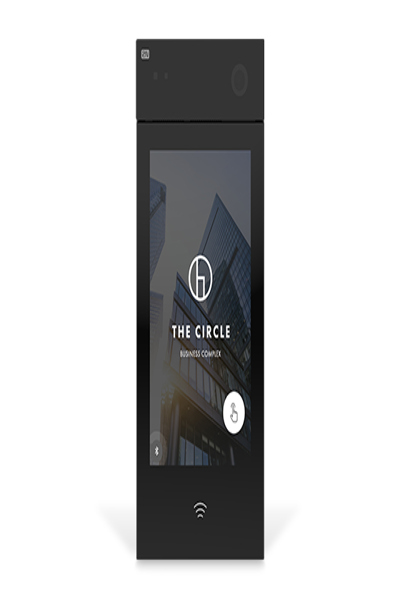

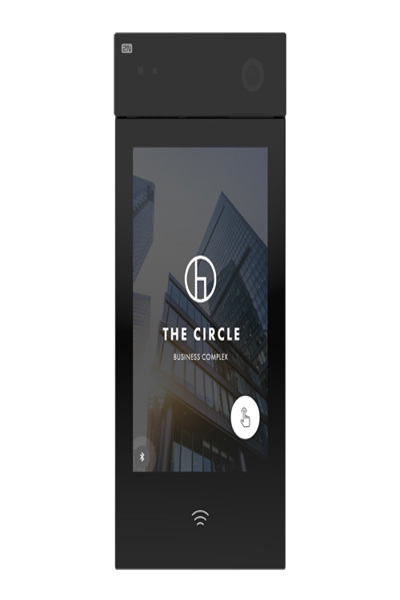

2N IP Style
2N Telecommunications 2N IP Style, 25.6 cm (10.1"), TFT/IPS, 1280 x 800 pixels, 16:10, H.264,MJPG, Black
Brand: 2N Telecommunications
SKU: 9157101
£2,598.71
Price excl. VAT
£3,118.45
Price incl. VAT
Available – In Stock
Do you have any question about this product? Click here to contact our pre-sales consultant and make the right purchase.
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
Camera
Maximum image resolution
2560 x 1920 pixels
Maximum video resolution
2560 x 1920 pixels
Maximum frame rate
30 fps
Viewing angle, horizontal
144 °
Viewing angle, vertical
126 °
Technical details
Connectivity technology
Wired & Wireless
Colour
Y
Speakerphone
Y
Number of displays supported
1
Maximum number of cameras supported
1
Maximum indoor range
0.5 m
Maximum outdoor range
10 m
Built-in speaker(s)
Y
Number of speakers
2
Speaker power
4 W
Voice codecs
G.711,G.722,G.729
VoIP protocols
SIP (UDP, TCP, TLS)
Wall mountable
Y
Built-in microphone
Y
Viewing angle
170 °
Network
Ethernet LAN data rates
10,100 Mbit/s
Ethernet LAN (RJ-45) ports
1
Bluetooth
N
Power over Ethernet (PoE)
Y
Networking standards
IEEE 802.3at
Display
Display diagonal
25.6 cm
Display technology
TFT/IPS
Display resolution
1280 x 800 pixels
Display aspect ratio
16:10
Touchscreen
Y
Video formats supported
H.264,MJPG
Design
Product colour
Black
International Protection (IP) code
IP65
IK code
IK08
Power
AC adapter output voltage
30 V
AC adapter output current
1 A
Weight & dimensions
Width
170 mm
Depth
40 mm
Height
355 mm
Weight
1.95 kg
Operational conditions
Operating temperature (T-T)
30 - 60 °C
Storage temperature (T-T)
30 - 70 °C
Operating relative humidity (H-H)
10 - 95 %
Ident
Manufacturer ID
9157101
EAN/UPC
8595159517391
CAMERA OF THE FUTURE
Enhance your projects with an intercom which can handle multiple simultaneous full HD streams and has a 5 MPx chip. It supports WDR and provides colour image, even in low light conditions.

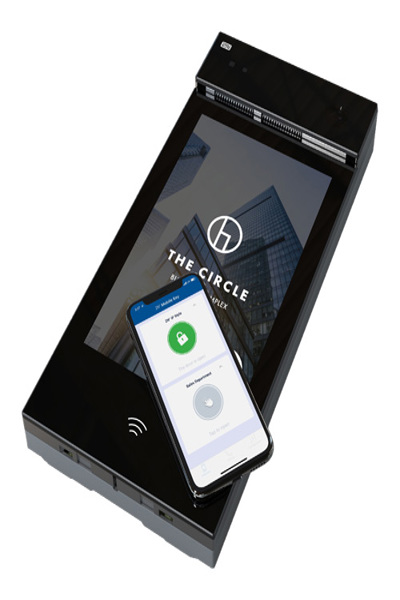

FASTEST MOBILE ACCESS CONTROL
Rely on our evolutionary WaveKey technology. We successfully opened the door 15,000 times using 100 different phones. So we are sure that in 98% of cases we open the door in less than 1 second.

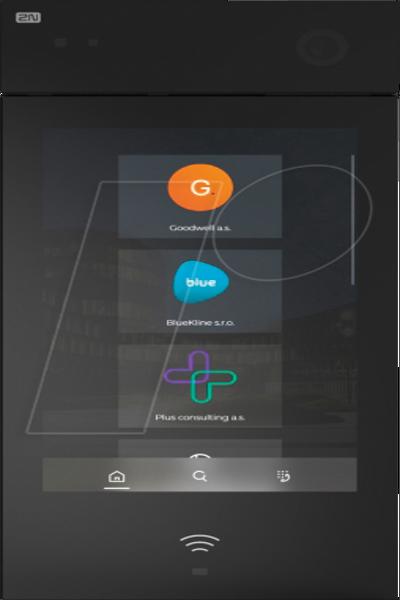

PREMIUM 10? DISPLAY
The extreme brightness of the display guarantees excellent readability, even in direct sunlight. You will also captivate users with the immediate response and smooth animations.

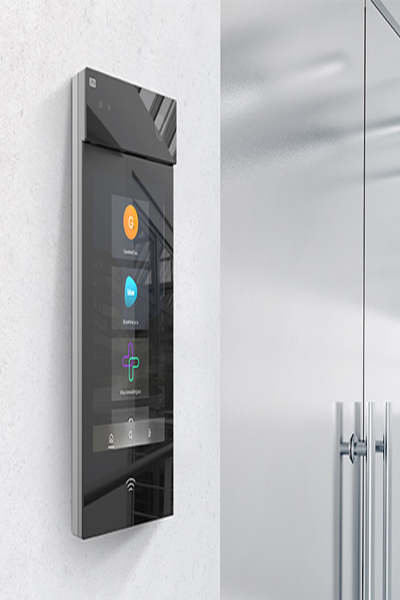

IP65 AND IK08 CERTIFIED DURABILITY
Don’t be fooled by the fully glazed surface. The 2N® IP Style can easily resist heavy rain, a dusty environment, and even attacks by vandals.

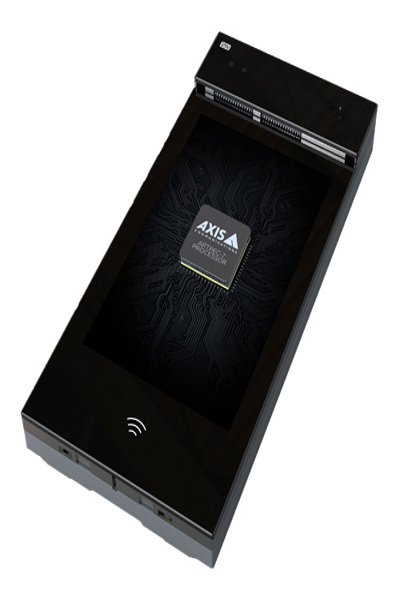

PLEASURE TO INSTALL
Together with you, we developed a new installation mechanism. Thanks to a patented tilt-out system, you have both hands free to work with the cables.

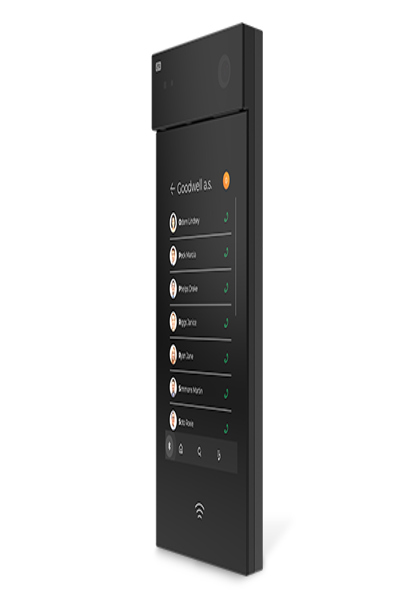

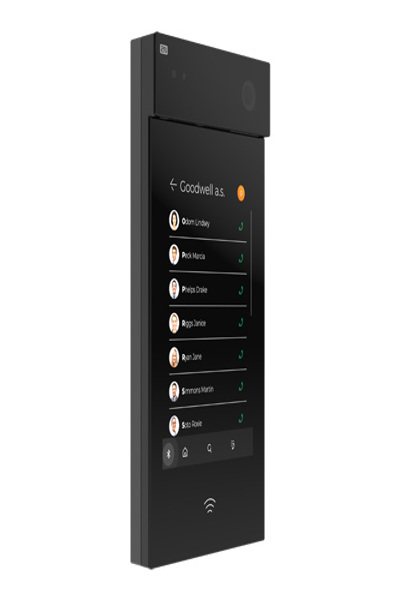

CUSTOMISE UI TO YOUR PROJECT
Select from 2 different ways of displaying the intercom’s user interface. You'll satisfy the specifics of apartment or office buildings and tweak the user experience to perfection.
