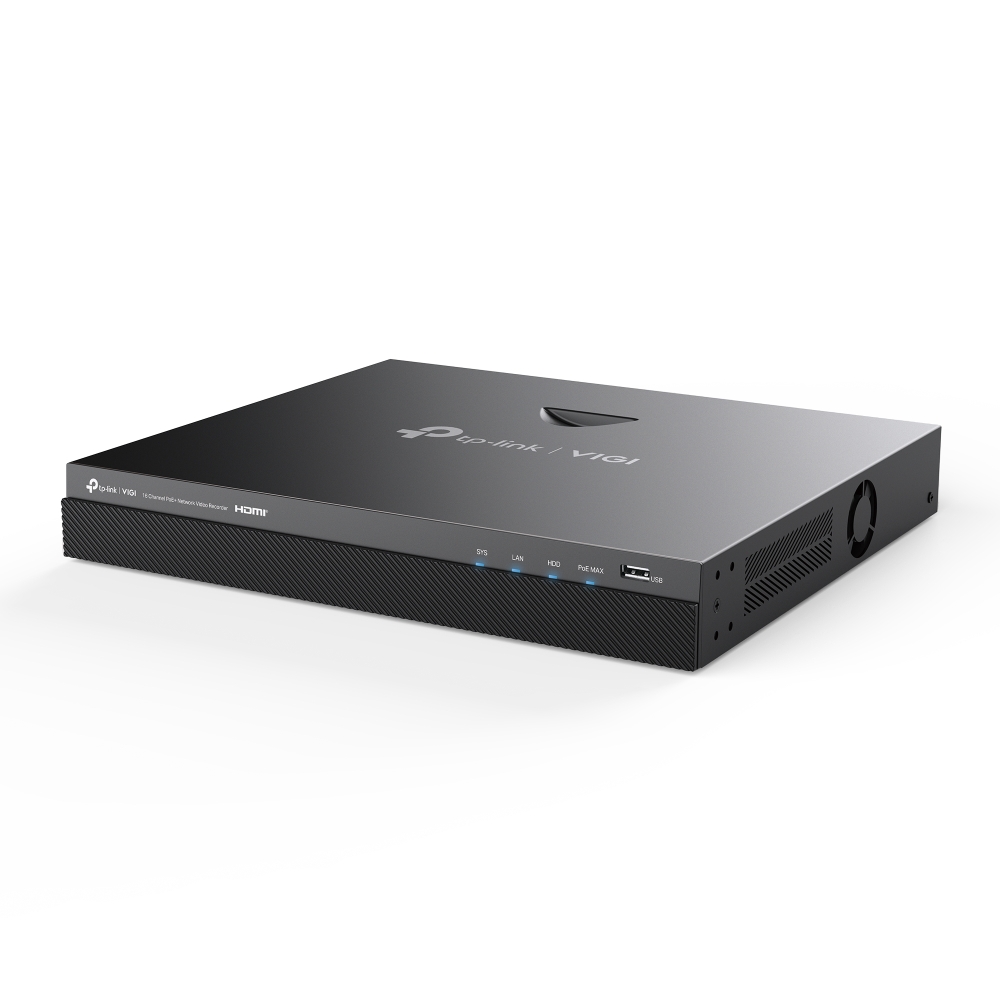

TP-LINK VIGI NVR2016H-16MP 16 Channel PoE+ NVR
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
Technical data
General
Device Type
NVR
Video Channels
16
Image Resolution
1280x720, 1920x1080, 1680x1050, 1280x1024, 1440x900, 3840x2160
Compression Format
G.726, H.264, H.265, G.711A, H.264+, G.711u, H.265+
Package Content
External power adapter, mouse, HDD power cables, power cables, mounting accessories, HDD data cable
Compliant Standards
Plug and Play, VCCI, BSMI, IC, FCC, EAC, RCM, IEEE 802.3af, IEEE 802.3at, UKCA, Triman
Security DVR
Frame Rate (Record)
30 fps
Video Recording Resolution
1920x1080, 1280x720, 8 Megapixels, 5 Megapixels, 4 Megapixels, 3 Megapixels
Display Modes
6 split screens, 9 split screens, full screen, 8 split screens, 16 split screens, 4 split screens
Playback Search
Date / time, event, instant, tag
Record Events
Motion detection, scheduled, manual, video loss, line crossing detection, intrusion detection, object removal detection
Networked
Yes
Features
Power over Ethernet (PoE), Video Tampering Alerts, vehicle detection, 80Mbps Incoming Bandwidth, 60Mbps Outgoing Bandwidth, human detection, region entrance, region exiting, object left detection
Hard Drive
Quantity Installed
1
Quantity Supported
2
Capacity
4 TB
Interface
Serial ATA
Supported Max Total Capacity
20 TB
Networking
Power Over Ethernet (PoE)
PoE+
Network Interfaces
Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols
NTP, UPnP, CGI, ONVIF
Features
Two-way audio support, reset button, ONVIF support, security slot (Kensington security lock compatible), built-in buzzer, 140W PoE power budget, LED status indicators

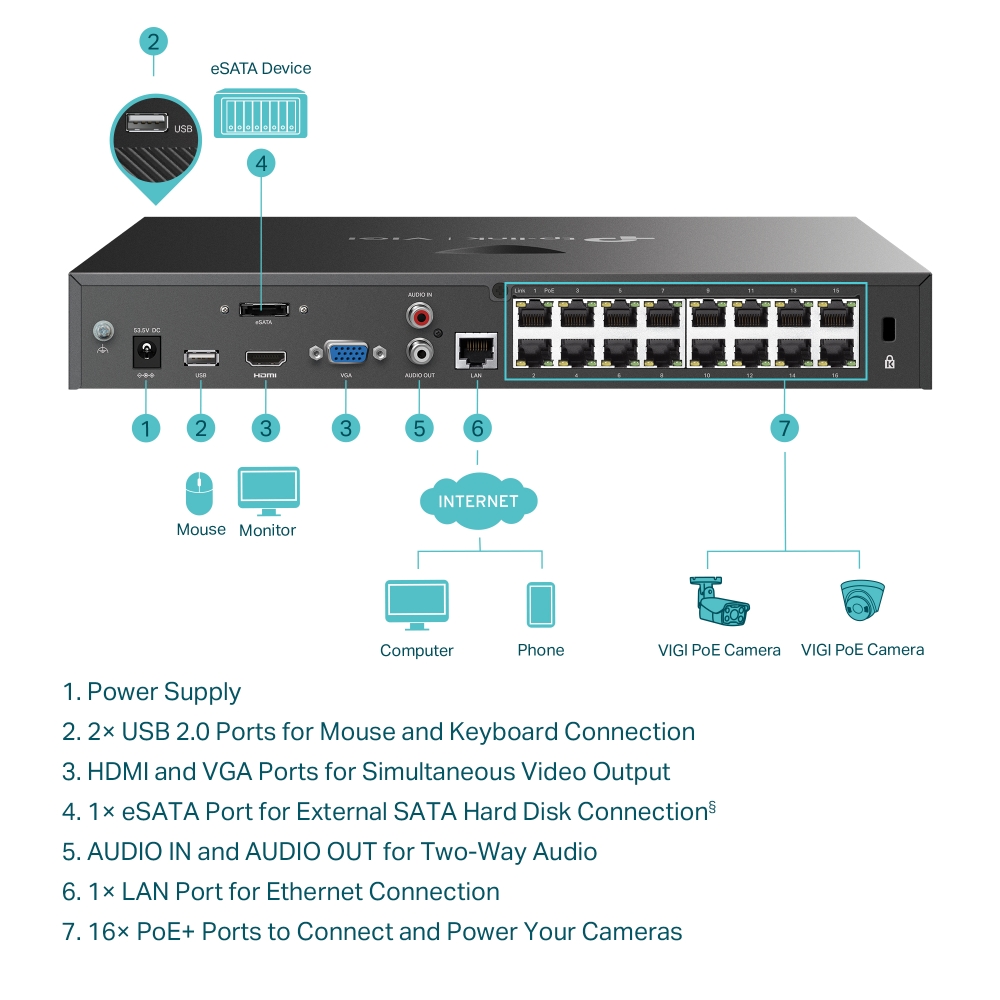

Connections
Video Input Ports
RJ-45 x 16
Video Output Ports
HDMI x 1, VGA x 1
Audio Input Ports
RCA x 1
Audio Output Ports
RCA x 1
Network Port
10/100Base-TX x 16 (PoE+) / 1000Base-T x 1
Other Ports
USB 2.0 x 2, eSATA x 1
Power
Voltage
53.5 V
Power Consumption
40 Watt
Power Consumption Details
With HDD
Dimensions & Weight
Width
33 cm
Depth
28.5 cm
Height
4.5 cm
Weight
2.1 kg
Dimensions & Weight (Shipping)
Shipping Weight
4.1 kg
Environmental Parameters
Min Operating Temperature
-10 °C
Max Operating Temperature
55 °C
Humidity Range Operating
10 - 90% RH (non-condensing)
TP-LINK VIGI NVR2016H-16MP 16 Channel PoE+ Network Video Recorder TP-LINK
- Supports up to 20 TB of storage for extensive video recording
- Multiple video compression formats including H.265+ for efficient storage
- Operates in a wide range of temperatures and humidity levels for reliable performance
- Comprehensive security features including human and vehicle detection
- 140 W PoE power budget supports a wide range of PoE devices
- Advanced connectivity
Equipped with a variety of audio and video input and output ports, including HDMI and VGA for video output, and RCA for audio input and output, this standalone NVR ensures seamless connection to a wide range of devices. - High-capacity storage
Supporting up to 20 TB of storage across two Serial ATA HDDs, the TP-Link VIGI NVR2016H-16MP V1 offers ample space for high-resolution video recordings, making it ideal for extensive surveillance setups. - Enhanced video compression
With support for multiple compression formats including H.264, H.264+, H.265, and H.265+, this device ensures efficient storage and smooth video playback without compromising on quality. - Robust environmental adaptability
Designed to operate within a wide range of temperatures from -10°C to 55°C and a humidity range of 10 - 90% RH (non-condensing), ensuring reliable performance in various environmental conditions. - Comprehensive security features
Features like human detection, vehicle detection, and video tampering alerts, alongside support for various record events such as motion detection and line crossing detection, provide enhanced security and situational awareness.
