NOTE: The information below is provided for your convenience only, accuracy of specifications cannot be guaranteed. But if necessary, please verify with us before purchasing. Data provided by 1 World Sync
|
|
|

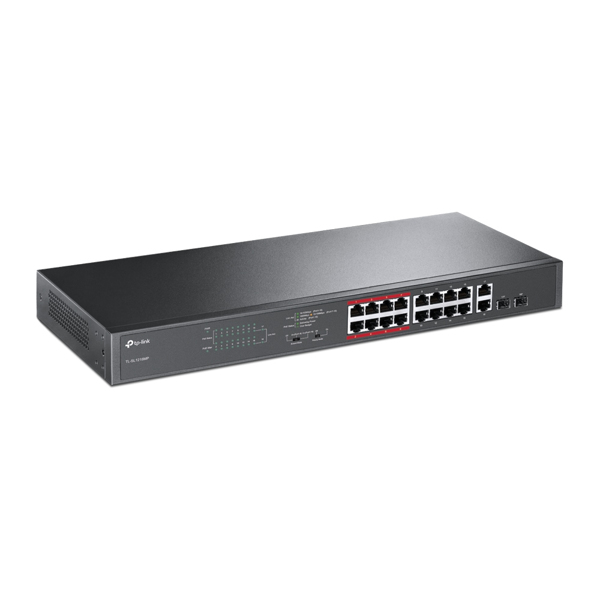

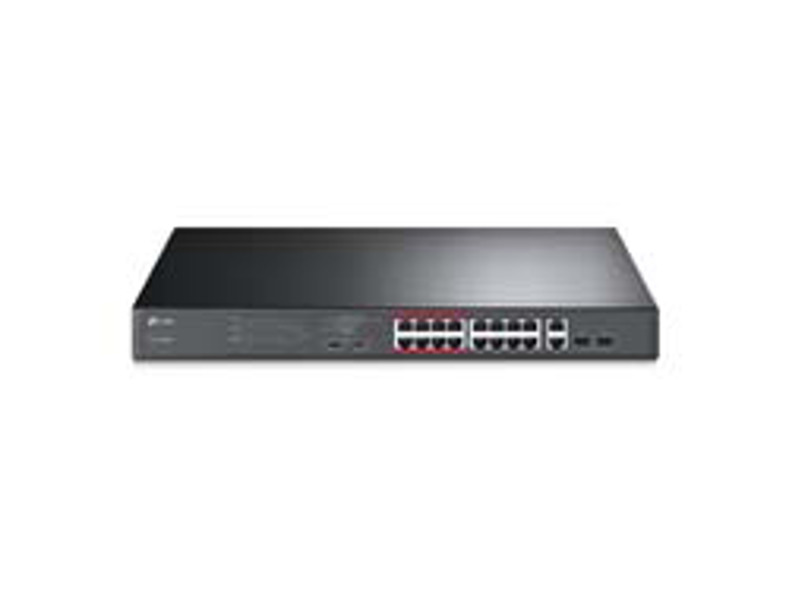

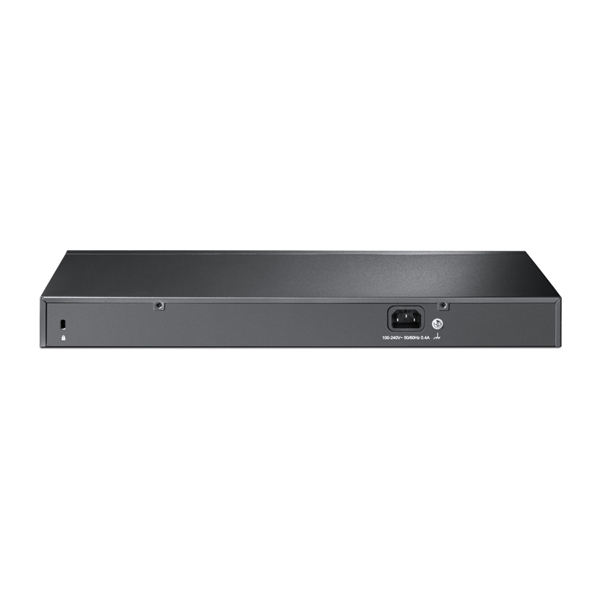

TP-LINK TL-SL1218MP - Unmanaged - Gigabit Ethernet (10/100/1000) - Power over Ethernet (PoE) - Rack mounting |
|
16x PoE+ - 2x 1000Mbps - 2x Combo Gigabit SFP - 2x Fans - Bandwidth 7.2 Gbps - 802.3at/802.3af - 192W |
|
Group |
Network Equipment |
|
|
Manufacturer |
TP-LINK |
|
|
Manufacturer item no. |
TL-SL1218MP |
|
|
EAN/UPC |
6935364099824 |
|
|
|
|
|
|
Description |
|
|
|
|
TP-Link TL-SL1218MP - Switch - 16 Anschlüsse - unmanaged - an Rack montierbar, Dank der Unterstützung des 802.3af/at PoE+ Standard
erreicht die Leistungsaufnahme des TL-SL1218MP
bis zu 30W für jeden Port.
Die gesamte Leistung für 16 PoE-Ports kann bis
zu 192W betragen.
Der TL-SL1218MP ist daher die ideale Auswahl für
Videoaufzeichnungen von kleinen und mittleren Systemen.
|
|
|
|
| Extended details | | | | | General | | | Type | Switch | | | Other product features (i.e. waterproof, volume control, ...) | Unmanaged | | | Build type (external/internal) | Rack module | | | | Interfaces / Connectivity | | | Amount of ports | Amount of ports: | | | | Network | | | network protocol | TCP/IP | | | Network standards | Power over Ethernet | | | Network ports | RJ-45 | | | | Technical specifications | | | Medium | Fiber Optic | | | Transmission rate | 1 Gbps | | | Rack height units | 1 U | | | | Measurements / weight | | | Measurements | 440 x 180 x 44 mm | |
|
|
|
|
|
Download Link
TL-SL1218MP - Unmanaged - Gigabit Ethernet (10/100/1000) - Power over Ethernet (PoE) - Rack mounting
https://www.tp-link.com/us/business-networking/unmanaged-switch/tl-sl1218mp/
Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance
High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.
Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.
- 16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
- Up to 250m data and power transmission under extend mode specially designed for surveillance system
- Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor
- High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports
- Easy to use, with no configuration and installation needed
