PowerColor Hellhound Radeon RX 7800 XT - RX7800XT 16G-L/OC/WHITE

PowerColor RX 7800XT. Graphics processor family: AMD, Graphics processor: Radeon RX 7800 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0. Interface type: PCI Express 4.0. Number of fans: 3 fan(s)

Discover the PowerColor Hellhound Radeon RX 7800 XT, a high-performance video card designed to elevate your gaming and creative projects. This card features 16 GB of GDDR6 SDRAM and a memory speed of 19.5 Gbps, ensuring smooth and detailed graphics rendering. With a boost clock speed of 2520 MHz and 3840 stream processors, it delivers exceptional performance for high-resolution games and graphic-intensive applications. The Radeon RX 7800 XT supports DirectX 12, allowing you to enjoy high-quality games with advanced graphics technologies. Additionally, its multiple HDMI and DisplayPort outputs provide the flexibility to connect various displays, making it perfect for an immersive gaming setup or a productive multi-monitor workstation. Experience the power of AMD Radeon RX 7800 XT with the reliability and innovation of PowerColor Hellhound.

High Quality Japanese Dual Ball Bearings

Dual ball bearings reduce rotational friction, providing excellent heat dissipation and effectively doubling the expected lifetime of the fans

Intelligent Fan Controller

Utilizing temperature detection from a smart chip, fans will start running when the GPU reaches 60? and shut down below 50?. Efficient cooling, fan-noise reduction, and extended product lifetime are all benefits of a more accurate temperature monitoring.

Unprecedented Ring-fan Blade Design

The newest 9-blade design of our fans generates better airflow and air pressure under the same noise level, improving cooling performance to reduce GPU temperatures by more than 3? compared to previous generations.

GPU Direct-Contact Copper Plate

We have increased the copper plate area to provide direct contact with the GPU while covering VRAM to increase the heat transfer threshold to the max.

Vertical Fin Heatsink

A brand new white heatsink with closely spaced vertical fins is mounted on the PCB, offering a larger heat-spreading area and improved heat radiation. This allows airflow to efficiently disperse heat.

Turbulence Reducing Fan Rotation

The middle fan spins in the reverse direction to reduce the air turbulence, which reduces noise level without sacrificing the cooling efficiency.

Optimum Heatpipe Arrangement

A set of 5 x 6? fresh new white nickel-plated copper heatpipes align closely above the PCB to more quickly and effectively transfer heat from the GPU and VRAM to the cooling array.

Car-Grade Power Module DrMOS with iMON Real Time Digital Monitoring

Hellhound adopts a 9+2+1 phase VRM design with DrMOS to power the GPU as well as an additional 2+1 phase specifically designated for the VRAM. New IMON technology monitors and reports the electric current and power consumption on each individual phase. By balancing the workload, the Hellhound ensures unparalleled stability and thermal protection during overclocking.

High Quality PCB Design

A premium 14-layer high TG PCB Board -including a 2 oz power layer- is utilized in the Hellhound RX 7800 XT; a PCB such designed decreases signal loss during transmission: important especially for high power currents, with added stability.

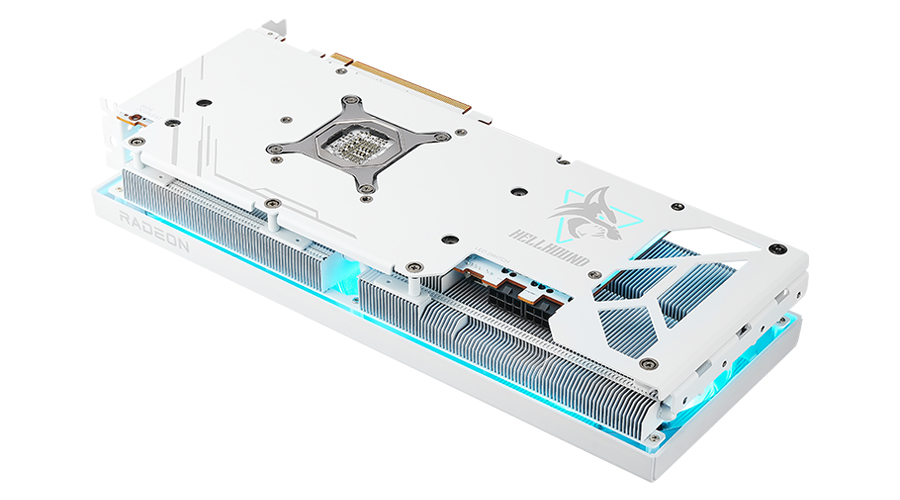

Metal Reinforced Backplate

The metal backplate strengthens and protects the internal components from PCB bend, and a cut-out design on the back plate allows exhaust heat to properly flow through for heat-dissipation efficiency.

Ice Blue and Glacier White LED Color

Hellhound of this generation now comes with two LED color options. Gamers are able to choose the color they want by flipping the switch on side of the card.jects a crisp, calm, elegance.

Dual BIOS Mode

Hellhound RX 7800 XT features Dual BIOS built-in and a switch for easy swapping.
-OC BIOS: A boosted mode that increases fan RPM to keep your card operating at a lower temperature to drive higher performance.
-Silent BIOS: Focused on lower noise and fan longevity, a milder fan speed, trading fan speed and noise for moderate, but still controlled, temperatures while maintaining performance.

• 16 GB GDDR6 SDRAM for superior graphics performance
• Boost clock speed of 2520 MHz for high-resolution gaming
• Supports DirectX 12 for high-quality gaming applications
• Equipped with 3 HDMI and 3 DisplayPort outputs for multiple displays
• PCI Express 4.0 interface for fast data transfer and excellent graphics quality

• High-speed memory
  Equipped with 16 GB of GDDR6 SDRAM and a memory speed of 19.5 Gbps, this video card ensures smooth performance and high-quality graphics rendering for demanding applications and games.
• Advanced connectivity
  Featuring three HDMI and three DisplayPort outputs, the Radeon RX 7800 XT supports multiple displays, offering flexibility for a comprehensive gaming setup or a multi-monitor workstation.
• Powerful performance
  With a boost clock speed of 2520 MHz and 3840 stream processors, this graphics card delivers exceptional performance, making it ideal for high-resolution gaming and graphic-intensive tasks.
