Gigabyte GeForce RTX 4090 AERO OC 24G
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
Technical data
General
Device Type
Graphics card
Bus Type
PCI Express 4.0
Graphics Engine
NVIDIA GeForce RTX 4090
Boost Clock
2535 MHz
CUDA Cores
16384
Max Resolution
7680 x 4320
Max Monitors Supported
4
Interfaces Details
HDMI ¦ 3 x DisplayPort
API Supported
OpenGL 4.6, DirectX 12 Ultimate
Features
Dual Bios, GIGABYTE WINDFORCE cooling design, Vapor chamber cooling technology, RGB fusion, Gigabyte Alternate Spinning, 3D Active Fan, metal backplate, NVIDIA Ada Lovelace GPU technology, 4th gen Tensor Cores, 3rd gen Ray Tracing Cores, NVIDIA DLSS 3, screen cooling, Graphene Nano Lubricant, 110mm unique blade fan design, HDCP
Memory
Size
24 GB
Technology
GDDR6X SDRAM
Memory Speed
21 Gbps
Bus Width
384-bit
System Requirements
Required Power Supply
1000 W
Additional Requirements
16 pin PCI Express power connector
Miscellaneous
Included Accessories
16-pin to 4x 8-pin cable adapter, anti-sag bracket
Software Included
Gigabyte Control Center
Compliant Standards
DisplayPort 1.4, HDCP 2.3
Width
7.5 cm
Depth
34.2 cm
Height
15 cm
Manufacturer Warranty
Service & Support
Limited warranty - 4 years with product registration
Gigabyte AERO GeForce RTX 4090 OC 24G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4090. Discrete graphics card memory: 24 GB, Graphics card memory type: GDDR6X, Memory bus: 384 bit, Memory clock speed: 2100 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s)
- NVIDIA Ada Lovelace streaming multiprocessors
- 4th generation Tensor Cores
- 3rd generation RT Cores
- Integrated with 24 GB GDDR6X 384-bit memory interface
- WINDFORCE cooling system
- RGB Fusion
- Dual BIOS
- Protection metal back plate
- Anti-sag bracket
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- Anti-sag bracket
- 2535 MHz (Reference Card: 2520 MHz)
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4090
- Integrated with 24GB GDDR6X 384-bit memory interface
- WINDFORCE cooling system
- RGB Fusion
- Dual BIOS
- Protection metal back plate
- WINDFORCE cooling system
The WINDFORCE cooling system features three 110 mm unique blade fans, alternate spinning, 10 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation. - RGB Fusion
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER. - Protection metal back plate
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection. - Dual BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience. - Power indicator
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light. - Anti-sag bracket
The anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance. - Ultra durable
Ultra durable certified highest-grade metal chokes, lower ESR solid capacitors, copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life. - Friendly PCB design
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

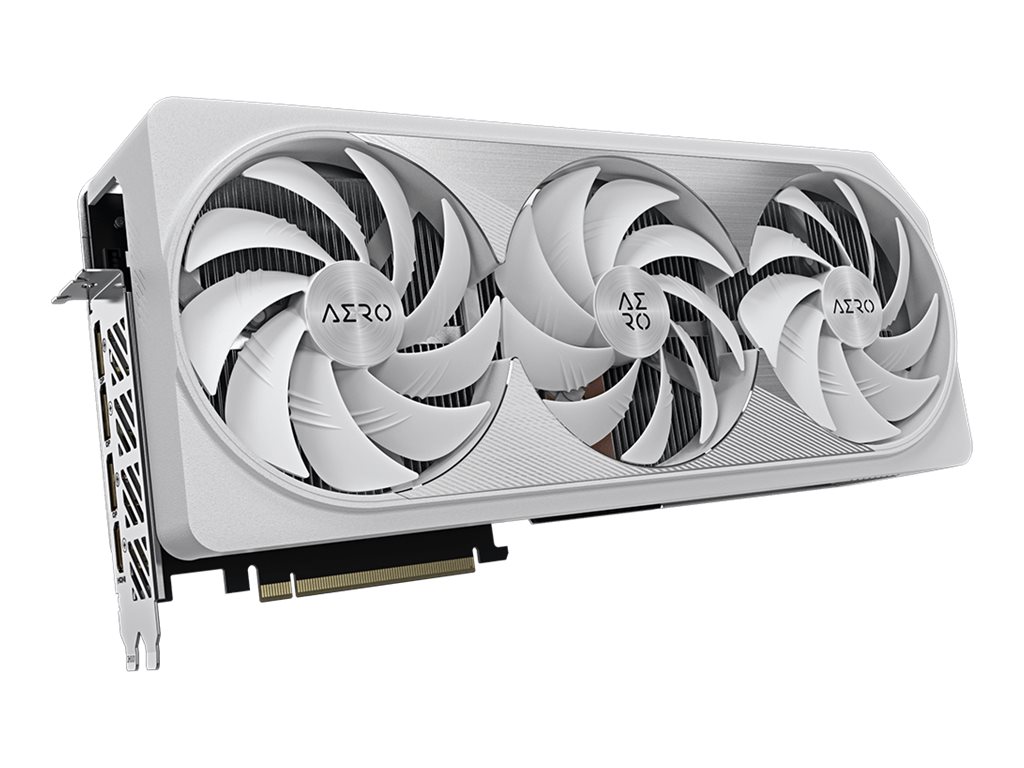

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 10 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
LARGE VAPOR CHAMBER & HEAT-PIPE
The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

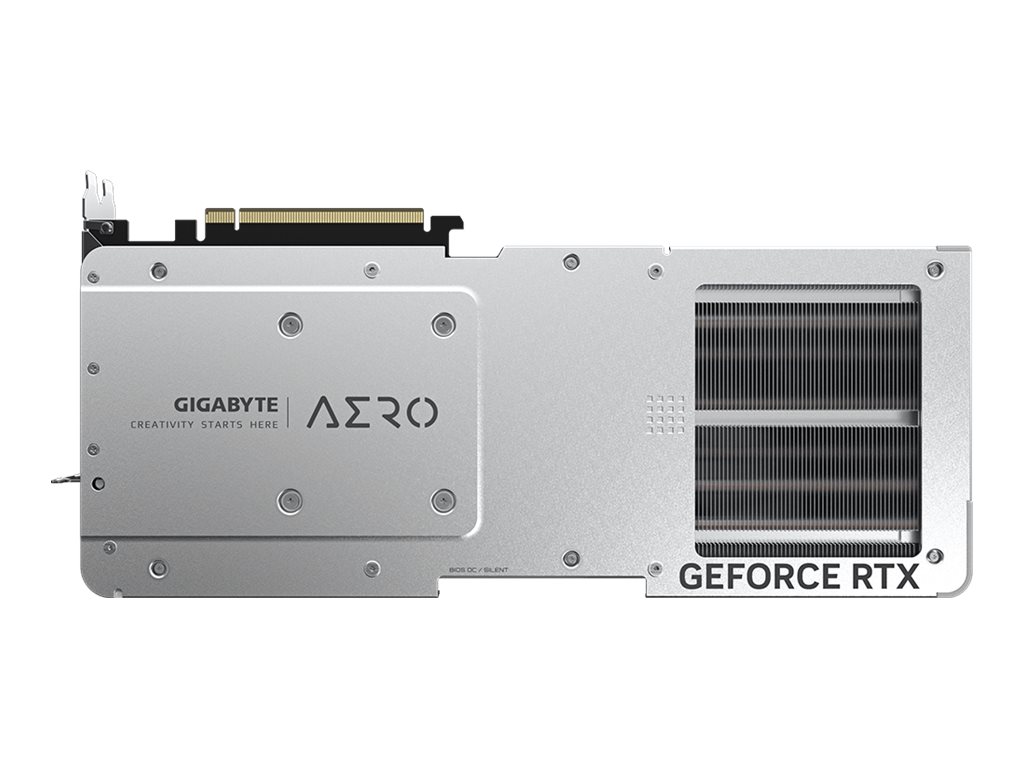

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
ANTI-SAG BRACKET
The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
4-YEAR WARRANTY
We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
4 Years Warranty (Online registration required)
