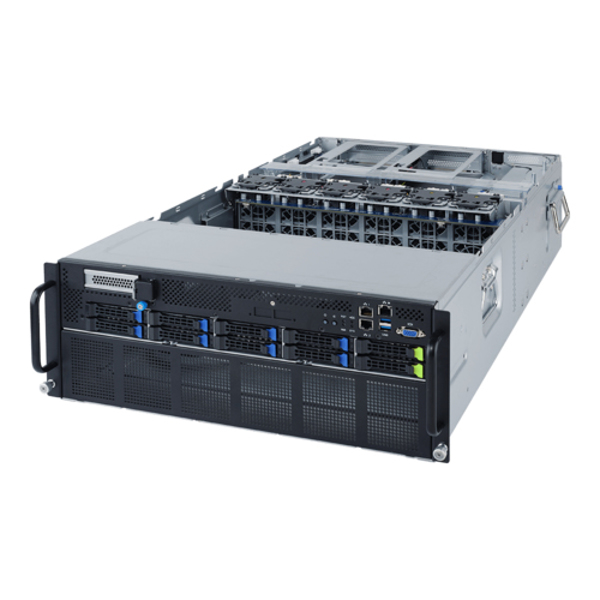

Gigabyte G482-Z54 rev. A00 - GBTQ0902-1 - G482-Z54

Quote/G482-Z54 rev. A00 - GBTQ0902-1

https://www.gigabyte.com/ua/Enterprise/GPU-Server/G482-Z54-rev-A00

AMD EPYCΓäó 7003 Series Processors ΓÇô ΓÇ£MilanΓÇ¥
GIGABYTE servers and AMD EPYC 7003 Series Processors deliver the highest possible I/O throughput to pave the way for fast communication between CPU and accelerator in HPC and data analytics.

- Up to 64 Cores
- 8 Channels of DDR4-3200
- Up to 4TB Memory Capacity
- 128 lanes PCIe 4.0
- 2-way SMT & Turbo Boost
- 4,6,8-channel Memory Interleave
- Synchronized Fabric and Memory Clock Speeds
- Secure Memory Encryption
- Secure Encrypted Virtualization

Max Memory Speed Even at 2 DPC
With GIGABYTE unique solution, maximum memory speed is now supported, even when using 2 DIMMS per channel*. GIGABYTEΓÇÖs server platforms give you the performance edge, with more memory capacity at faster speeds.

OCP 3.0 Ready
GIGABYTEΓÇÖs G-,H-,R- series offer servers that feature an onboard OCP 3.0 slot for the next generation of PCIe 4.0 add on cards. Advantages of this new type include:

- Easier Serviceability: simply slot in / pull out the card without needing to open the server chassis; tool less design
- Larger Thermal Envelope: more space for heat sink provides an increased power budget for new & emerging capabilities

Security with RoT and TPM 2.0 module
Hardware-level Root of Trust
Protection is built in the silicon to ensure systems will not be vulnerable to security attacks or cyber threats. This hardware-level root of trust (ROT) helps isolate the system as the boot process starts to make sure a verified code is used.

- Integrity of cryptographic keys and secure key generation
- Boot process protected and verified
- Secure application environment and protection at runtime

Heat and Power Efficiency
Automatic Fan Speed Control
To achieve the best cooling and power efficiency, GIGABYTE servers are enabled with automatic fan speed control. Individual fan speed will be automatically adjusted according to temperature sensors.

Cold Redundancy
To take advantage of the fact that a PSU will run at greater power efficiency with a higher load, GIGABYTE has introduced a power management feature called Cold Redundancy for servers with dual PSUs. When the total system load falls lower than 40%, the system will automatically place one PSU into standby mode, saving up to 10%.

High Availability
Smart Crises Management and Protection (SCMP)
SCMP is a GIGABYTE patented feature that will automatically force the systemΓÇÖs CPU to enter ULFM (ultra-low frequency mode for minimum power consumption) when the BMC is alerted to a PSU fault or error (such as power loss, power surge, overheating or a fan problem). This feature will prevent shutdown in systems with non-fully redundant PSU systems when one PSU is lost.

Server Management
GIGABYTE offers free-of-charge server management applications via small processor (BMC) built on the server.

- Server health monitoring
- Remote troubleshooting
- Resource utilization monitoring
- Reduction in server downtimes

GIGABYTE Management Console
- Single server management
- Feature-rich and easy to use browser-based interface
- Integration of 3rd party applications
- Automatic recording function
- SAS / RAID controller monitoring function

GIGABYTE Server Management (GSM)
- Multiple server management platform
- Compatible w/ IPMI or Redfish

Certified Ready with Software Partners
Being a member of key software alliance partner programs enables GIGABYTE to together rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization. GIGABYTE servers have a compatibility across various ecosystems.

Support Various Computing Accelerators
GIGABYTE servers have been tested and validated across a range of workloads with various computing accelerators designed to deliver high levels of performance for deep learning, high performance computing (HPC), enabling data scientists, researchers, and engineers to tackle challenges that were once impossible.

NVIDIA-Certified SystemsΓäó
Complex AI workloads, including clusters, are becoming more common and system integrators and IT staff must quickly adapt to the changing technology. In order to improve system compatibility and confidence, NVIDIA has introduced the NVIDIA-Certified Systems program that validates servers based on hardware and NVIDIA NGC CatalogΓÇÖs software. Currently the NVIDIA-Certified Systems focus on NVIDIA Ampere architecture and NVIDIA Mellanox network adapters, but the program will expand. As well, customers that are familiar with NVIDIA NGC Support Services can use the services for NVIDIA-Certified.

• Up to 8 x PCIe Gen4 GPGPU cards
• 3 x 80 PLUS Platinum 2200W redundant PSU
• NVIDIA-Certified system for scalability, functionality, security, and performance
• Dual AMD EPYCΓäó 7003 series processor family
• 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
• 2 x 1Gb/s BASE-T LAN ports (Intel┬« I350-AM2)
• 1 x dedicated management port
• 2 x 2.5" NVMe, 8 x 2.5" SATA hot-swappable HDD/SSD bays
• 8 x FHFL Gen4 expansion slots for GPU cards
• 1 x FHFL PCIe Gen4 x16 expansion slot
