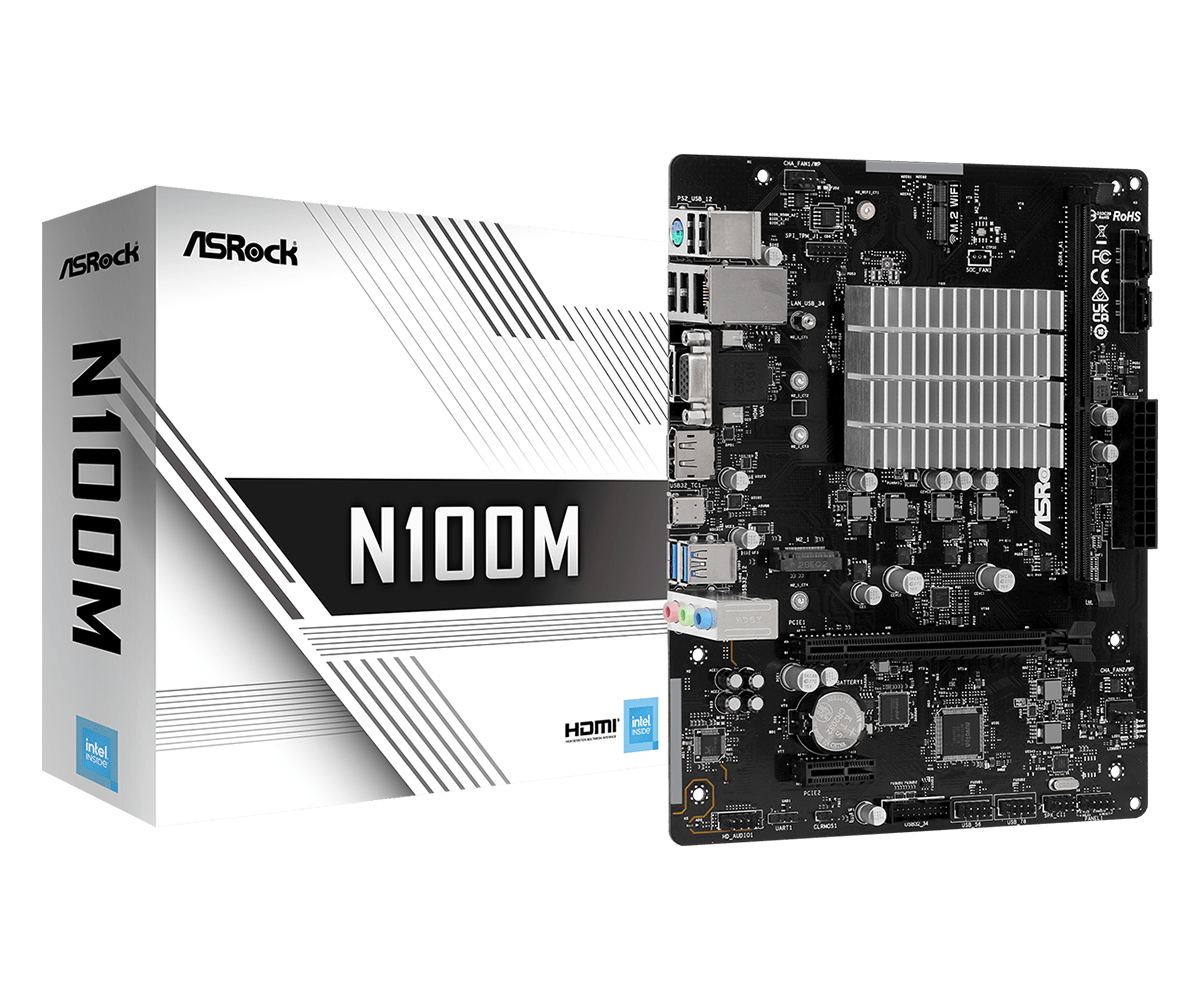

ASRock N100M - Motherboard - micro ATX - 90-MXBK80-A0UAYZ

Asrock N100M. Processor manufacturer: Intel, Processor socket: NA (integrated CPU), Compatible processor series: Intel Processor N. Supported memory types: DDR4-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: Intel® UHD Graphics, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111H

The ASRock N100M motherboard combines performance, connectivity, and durability to meet the needs of a wide range of users. From gamers to professionals, this micro ATX motherboard offers high-definition audio with an 8-channel output, ensuring an immersive sound experience. Its versatile connectivity options, including HDMI, VGA, and USB 3.2 ports, allow for easy integration of all your essential peripherals and devices. With support for DDR4 SDRAM at 3200 MHz and flexible storage solutions through M.2 and SATA-600 interfaces, it provides the speed and space needed for demanding applications and games. Additionally, the motherboard's fanless design heatsink and use of solid capacitors ensure silent operation and enhanced durability, making it a reliable choice for building a high-performance PC.

Intel® Alder Lake-N N100 Processor
The newest Intel® N100 processor, built on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.

Fanless Design
The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.

AV1 Decoding + 4K
Supports 10-bit HEVC & VP9 encoding/decoding, hardware-accelerated AV1 decoding, and a max. resolution of up to 4K x 2K 60Hz.

USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.

Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!

• High definition audio (8-channel) with Realtek ALC897 codec
• Multiple connectivity options including HDMI, VGA, and USB 3.2
• Supports DDR4 SDRAM at 3200 MHz for high-speed memory performance
• Fanless design heatsink and solid capacitors for silent and reliable operation
• Flexible storage with M.2 and SATA-600 interfaces

• ASRock N100M
• 2 x Serial ATA cable
• 2 x M.2 screws, IO shield
• Software

• Enhanced audio experience
  Experience high-definition audio with an 8-channel audio output and Realtek ALC897 codec, ensuring a rich audio experience whether you're gaming, watching movies, or listening to music.
• Versatile connectivity options
  With a range of ports including HDMI, VGA, USB 3.2 Gen 1 and 2, plus Gigabit Ethernet, this motherboard offers extensive connectivity for all your peripherals and devices.
• Robust storage solutions
  Equipped with M.2 and Serial ATA-300 interfaces, along with support for up to 2 x SATA-600 and 1 x M.2 storage devices, it provides flexible storage options to meet the needs of demanding applications and games.
• High-speed memory support
  Supports DDR4 SDRAM at 3200 MHz with one DIMM slot, allowing for high-speed memory configurations that can enhance the overall system performance.
• Efficient and reliable design
  Features a fanless design heatsink and solid capacitors, ensuring silent operation and enhanced durability for long-term use.
