Sharkoon REV100 - Tower - ATX
Sharkoon REV100 - Tower - ATX - windowed side panel (tempered glass) - no power supply - USB/Audio
Brand: Sharkoon
SKU: 4044951030163
£0.00
Price excl. VAT
£0.00
Price incl. VAT
Out of stock
Do you have any question about this product? Click here to contact our pre-sales consultant and make the right purchase.
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Form factor
Midi Tower
Type
PC
Product colour
Black
Power supply location
Rear
Supported power supply form factors
ATX, mini ITX, microATX
Front fans installed
1x 120 mm
Front fans diameters supported
120,140 mm
Rear fans installed
1x 120 mm
Supported HDD sizes
2.5,3.5 "
Width
215 mm
Depth
452 mm
Height
444 mm
Sharkoon ELITE SHARK REV100. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Rear, Supported power supply form factors: ATX, mini ITX, microATX. Front fans installed: 1x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 215 mm, Depth: 452 mm, Height: 444 mm
| Estimate Gross Weight | 6.03 |
|---|
https://en.sharkoon.com/product//30163#desc
Overview
The REV100 blends the innovative configuration of our REV case series into a compact design. Due to its space-saving dimensions, it fits easily into any setup and impresses with a simple but elegant look. Despite the smaller casing, the unmistakable features of the REV series are still to be seen, as also here, the mainboard is rotated 90 degrees and installed vertically. The tempered glass side panel is on the right side of the case, making the REV100 the ideal complement for smaller desks which are near or against walls on the left side.

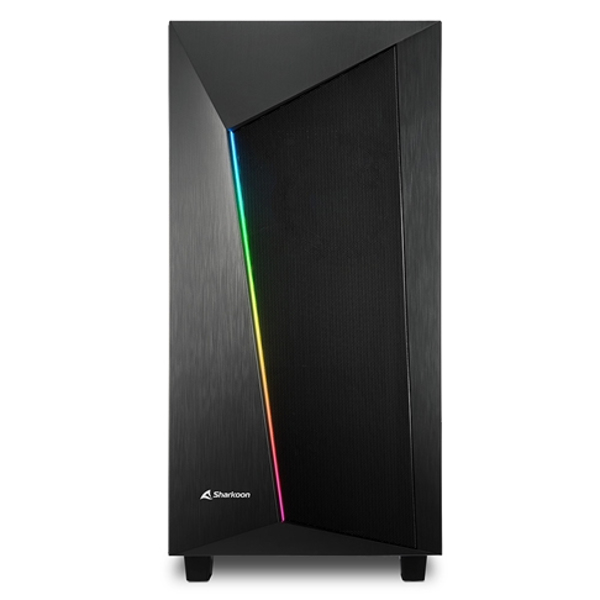

Simple Elegance. In keeping with its compact dimensions, the look of the REV100 has been kept intentionally minimalist. The front panel has a design consisting of geometrical angles and lines and looks especially chic with a surface resembling that of brushed metal. The design frames a mesh grille which is embedded in the panel and illuminated from one side by an RGB strip. This provides the front of the case with a subtle play of colors. As an additional highlight, an addressable RGB LED fan is pre-installed on the rear panel. The pre-installed RGB controller allows the RGB fan and strip and, if desired, other optional LED components to be illuminated in 16.8 million colors. The RGB fan of the REV100 is compatible with Asus Aura Sync, MSI Mystic Light Sync, Gigabyte Fusion and ASRock Polychrome SYNC. For mainboards without the appropriate RGB connection with a 5V-D-G or 5V-D-Coded-G pinout, the fan, strip and additional components can be illuminated in 14 lighting modes using the RGB controller and a dedicated button on the top of the case.
Innovative Design Concept. Like the other cases from the REV series, the REV100 is characterized by its novel configuration. The mainboard is installed vertically, rotated 90 degrees, providing a look which is far away from established standards. Cables can be stored neatly in the spacious compartment under the top panel and simply led out of the case via the cable pass-through on the rear panel.
Gaming Desk REVolution. The REV100 is typically REV, being especially suitable for placing on the left side of the desk. Instead of viewing into the case from the left side, the tempered glass side panel is now positioned on the right of the case. Since the REV100 dispenses with a power supply tunnel, the tempered glass does not cover the entire side of the case, but is supplemented underneath by a simple black panel, behind which cables and other visually unimpressive components can remain hidden.

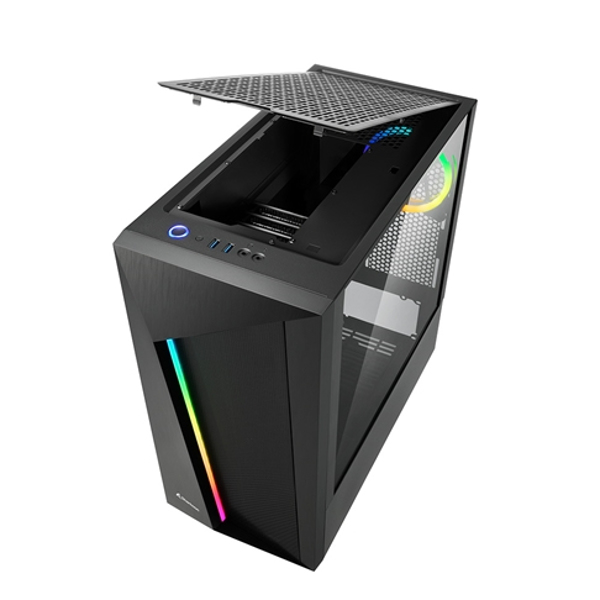

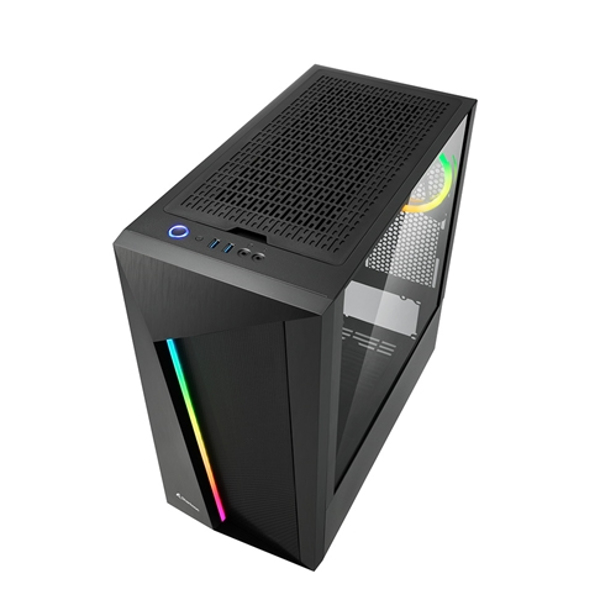

Especially Good Airflow. For its size, the REV100 is extremely breathable. The mesh grille in the front, behind which a 120 mm fan is already pre-installed, allows enough air to flow through the case. A detachable dust filter behind the front panel prevents unwanted dirt from entering the case. The detachable top cover is also perforated, further supporting the airflow.
Compact Case Configuration. Thanks to its compact dimensions, the REV100 can be easily integrated into any setup. Whether on or under the desk - the space-saving ATX case will cut a fine figure anywhere. A power supply tunnel has been dispensed with in the REV100 to maximize the interior space and to allow more flexibility when installing components and cables. This means that graphics cards with a maximum length of 31.5 cm and up to two 3.5'' hard drives or three SSDs can be installed inside compact case.
Overview
The REV100 blends the innovative configuration of our REV case series into a compact design. Due to its space-saving dimensions, it fits easily into any setup and impresses with a simple but elegant look. Despite the smaller casing, the unmistakable features of the REV series are still to be seen, as also here, the mainboard is rotated 90 degrees and installed vertically. The tempered glass side panel is on the right side of the case, making the REV100 the ideal complement for smaller desks which are near or against walls on the left side.
Simple Elegance. In keeping with its compact dimensions, the look of the REV100 has been kept intentionally minimalist. The front panel has a design consisting of geometrical angles and lines and looks especially chic with a surface resembling that of brushed metal. The design frames a mesh grille which is embedded in the panel and illuminated from one side by an RGB strip. This provides the front of the case with a subtle play of colors. As an additional highlight, an addressable RGB LED fan is pre-installed on the rear panel. The pre-installed RGB controller allows the RGB fan and strip and, if desired, other optional LED components to be illuminated in 16.8 million colors. The RGB fan of the REV100 is compatible with Asus Aura Sync, MSI Mystic Light Sync, Gigabyte Fusion and ASRock Polychrome SYNC. For mainboards without the appropriate RGB connection with a 5V-D-G or 5V-D-Coded-G pinout, the fan, strip and additional components can be illuminated in 14 lighting modes using the RGB controller and a dedicated button on the top of the case.
Innovative Design Concept. Like the other cases from the REV series, the REV100 is characterized by its novel configuration. The mainboard is installed vertically, rotated 90 degrees, providing a look which is far away from established standards. Cables can be stored neatly in the spacious compartment under the top panel and simply led out of the case via the cable pass-through on the rear panel.
Gaming Desk REVolution. The REV100 is typically REV, being especially suitable for placing on the left side of the desk. Instead of viewing into the case from the left side, the tempered glass side panel is now positioned on the right of the case. Since the REV100 dispenses with a power supply tunnel, the tempered glass does not cover the entire side of the case, but is supplemented underneath by a simple black panel, behind which cables and other visually unimpressive components can remain hidden.
Especially Good Airflow. For its size, the REV100 is extremely breathable. The mesh grille in the front, behind which a 120 mm fan is already pre-installed, allows enough air to flow through the case. A detachable dust filter behind the front panel prevents unwanted dirt from entering the case. The detachable top cover is also perforated, further supporting the airflow.
Compact Case Configuration. Thanks to its compact dimensions, the REV100 can be easily integrated into any setup. Whether on or under the desk - the space-saving ATX case will cut a fine figure anywhere. A power supply tunnel has been dispensed with in the REV100 to maximize the interior space and to allow more flexibility when installing components and cables. This means that graphics cards with a maximum length of 31.5 cm and up to two 3.5'' hard drives or three SSDs can be installed inside compact case.
- Compatibility:
- Mainboard: Mini-ITX, Micro-ATX, ATX
- Max. Length Graphics: Cards: 31.5 cm*
- Max. Height CPU Cooler: 16.7 cm
- Max. Length Power Supply: 20 cm
- Max. Height Radiator incl. Fan (Rear): 5.5 cm
- (*28.8 cm if 2x 3.5" HDDs installed)
