Axis FA54 Main Unit - Video Server
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Maximum resolution
1920 x 1080 pixels
Resolution at capture speed
640x480@60fps,1280x720@50fps,1920x1080@24fps,1920x1080@25fps,1920x1080@30fps
Internal memory
1024 MB
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Copper ethernet cabling technology
10BASE-T,100BASE-TX,1000BASE-T
Ethernet LAN data rates
10,100,1000 Mbit/s
Supported network protocols
IPv4/v6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Product colour
Black
Certification
55032 A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, VCCI A, RCM AS/NZS CISPR 32 A, ICES-003 A, IEC/EN/UL 62368-1, EN 50581, IEC 60529 IP3X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-6, IEC 60068-2-27
Power consumption (max)
30 W
Power consumption (typical)
14 W
Output voltage
12 V
Axis FA54. Maximum resolution: 1920 x 1080 pixels, Resolution at capture speed: 640x480@60fps,1280x720@50fps,1920x1080@24fps,1920x1080@25fps,1920x1080@30fps, Internal memory: 1024 MB. Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. Copper ethernet cabling technology: 10BASE-T,100BASE-TX,1000BASE-T, Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: IPv4/v6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP , SFTP, CIFS/SMB, SMTP, Bonjour, UPnP,.... Product colour: Black, Certification: 55032 A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1 , EN 61000-6-2, FCC 15 BA, VCCI A, RCM.... Power consumption (max): 30 W, Power consumption (typical): 14 W, Output voltage: 12 V
| Estimate Gross Weight | 0.99 |
|---|

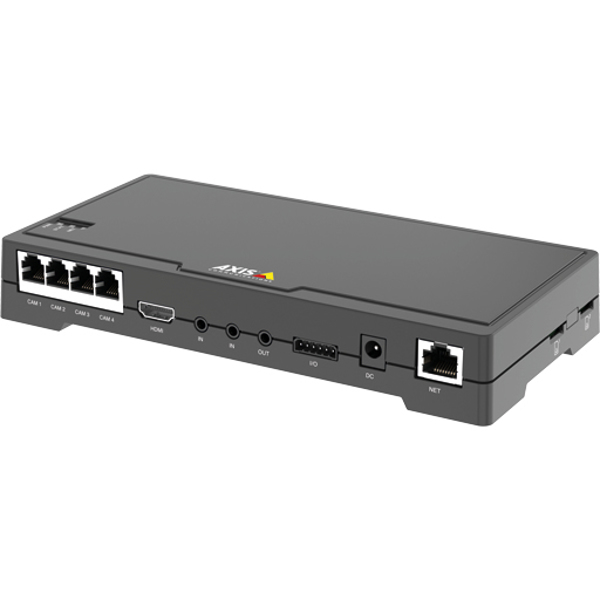

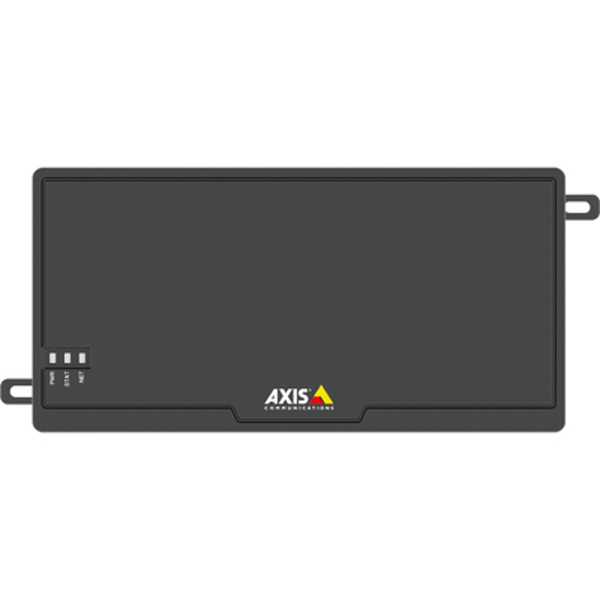

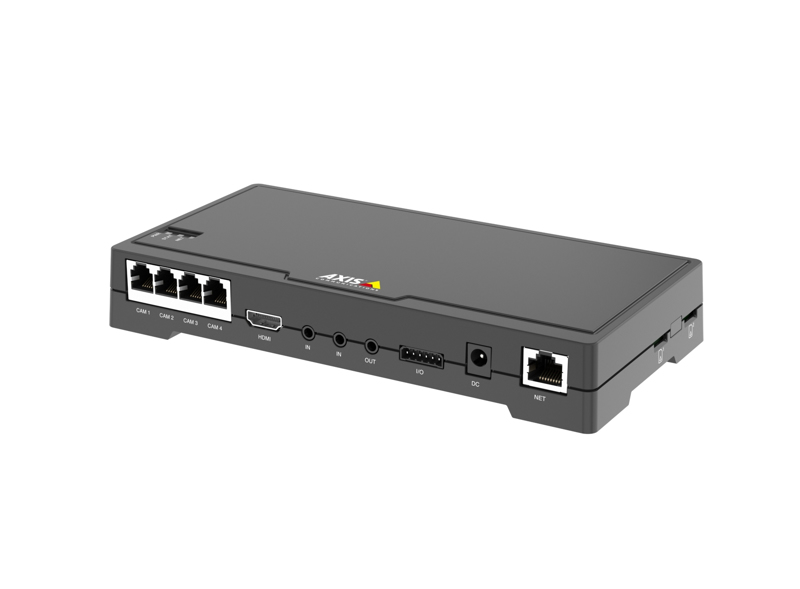

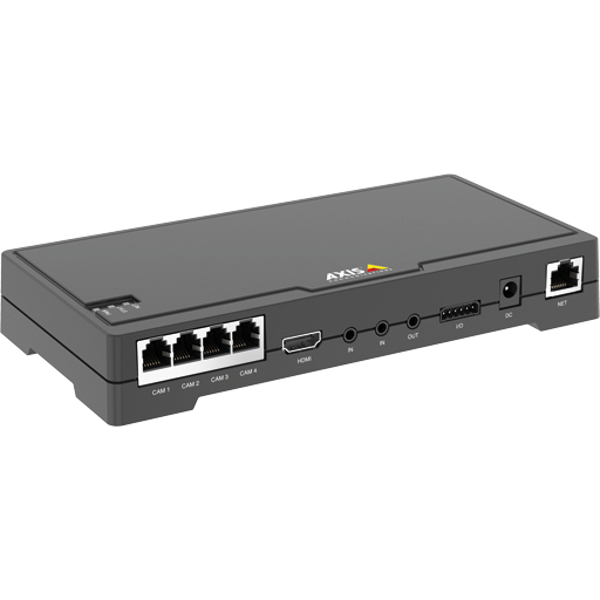

AXIS FA54 supports up to four AXIS FA Sensor Units, enabling cost-effective and highly discreet surveillance of four closely situated areas with one system. The main unit can stream full frame rate HDTV 1080p videos from four sensor units simultaneously using one IP address. Ideal for retail applications, AXIS FA54 also supports quad view streaming and has an HDMITM port for connection to a surveillance or public view monitor. The unit uses Forensic WDR (wide dynamic range) that is tuned for motion. Axis Zipstream video compression technology reduces bandwidth and storage requirements.
- Forensic WDR; Full frame rate HDTV 1080p streams from four sensor units; HDMI output, two-way audio, I/Os, two microSD card slots, 12 V DC; Quad view stream, Axis Zipstream and Corridor Format
