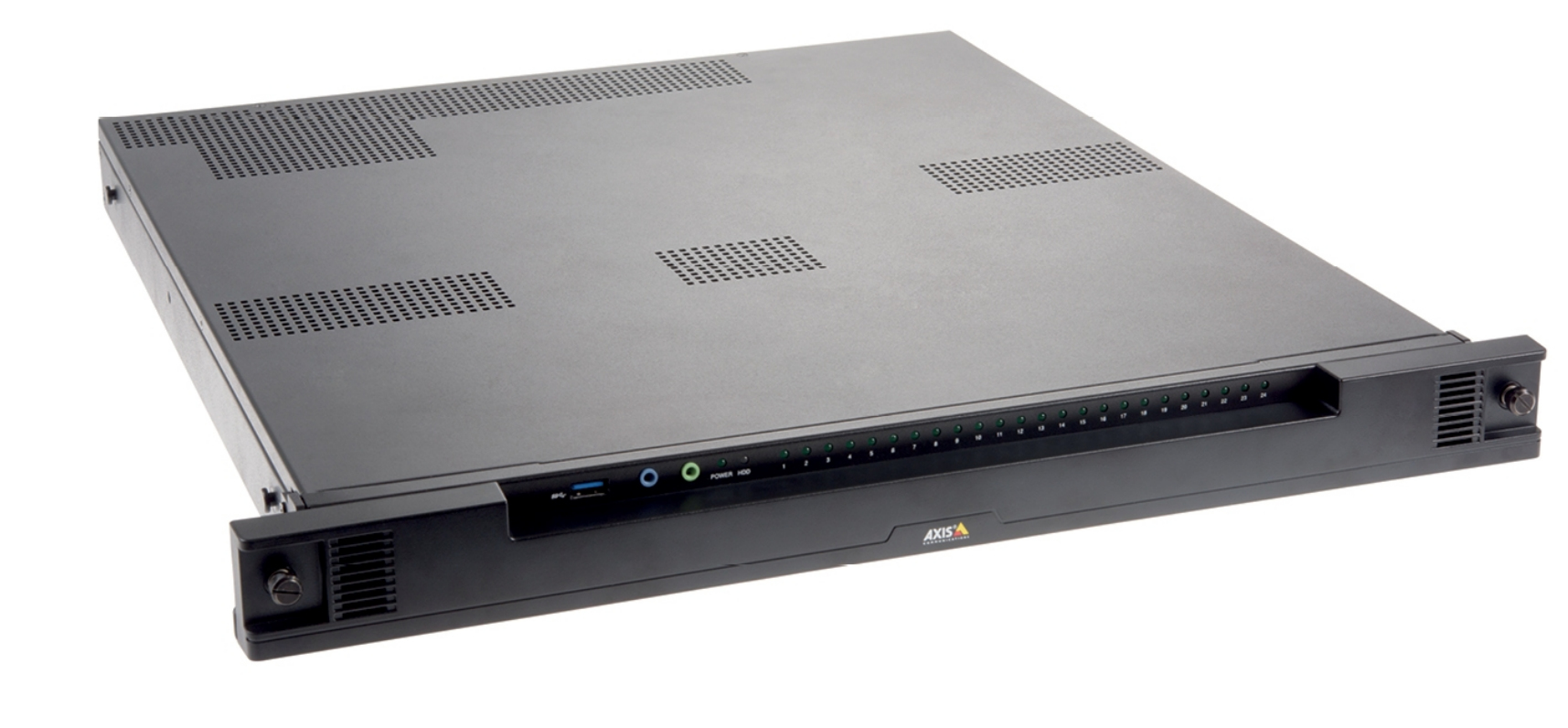

Axis Camera Station S2224 - NVR - 24 Channels
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Video input channels
24 channels
Maximum resolution
3840 x 2160 pixels
Video recording modes
1080p
HDD capacity
6 GB
Total installed storage capacity
12000 GB
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.3at
Rack capacity
1U
Product colour
Black
Certification
CNS 13438, EAC, EN 55024, , EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, IEC/EN 60950-1, IEC/EN 62368-1, KC-Mark, UL 62368-1
AC input frequency
50/60 Hz
Power
520 W
Output current
6.5 A
Axis S2224. Video input channels: 24 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 1080p. HDD capacity: 6 GB, Total installed storage capacity: 12000 GB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3at. Rack capacity: 1U, Product colour: Black, Certification: CNS 13438, EAC, EN 55024, , EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15.... AC input frequency: 50/60 Hz, Power: 520 W, Output current: 6.5 A
AXIS Camera Station S2224 Appliance is an all-in-one recording solution with integrated PoE switch designed to deliver reliable high-definition surveillance.
- All-in-one solution with integrated PoE switch
- Flexible storage options including RAID
- Ease of installation
- Validated with extensive support
- All-in-one solution with integrated PoE switch
- Flexible storage options including RAID
- Ease of installation
- Validated with extensive support
- AXIS Camera Station licenses included
- AXIS Camera Station S2224
- Rack mount rails < li>Software: AXIS Camera Station (24-channel licenses)
- A perfect match
AXIS Camera Station S2224 Appliance is extensively tested with the wide range of Axis quality products to provide you with an affordable, end-to-end solution with unbeatable reliability. All hardware components, including the PoE switch and storage units, are validated to meet the demands for reliable high definition surveillance up to 4K Ultra HD. This easy-to-install solution for mid-sized installations provides you with everything you need to help ensure every customer installation is trouble-free. - Easy to install all-in-one recorder strong>
- Improved performance and reliability
AXIS S2224 Appliance contains a powerful CPU to allow for fast processing of data. The operating system is stored on a Solid-State Drive (SSD) meaning system start-up is fast, and the operating system will not be affected in the event of failure of the recording storage hard drives. For extra security, AXIS S2224 includes multiple RAID-configured hard drives for increased performance and storage capacity providing even more reliable data storage, with built-in protection against data loss in the event of drive failure.
With outstanding usability, AXIS Camera Station S2224 Appliance is designed for fast installation and setup. The integrated recording toolbox gives you easy access to a complete end-to-end solution with total control over your entire surveillance system. Furthermore, AXIS S2224 features an integrated PoE switch. It comes with AXIS Camera Station licenses and pre-configured software so out-of-the-box you get seamless and reliable integration to all your Axis network cameras. And thanks to greater storage flexibility you can fully customize your system storage and add extra hard drives.
| Estimate Gross Weight | 14.94 |
|---|---|
| Estimate Gross Weight | 14.94 |
AXIS Camera Station S2224 Appliance is an all-in-one recording solution with integrated, manageable PoE switch designed to deliver reliable high-definition surveillance with up to 4K resolution. For quick and easy installation, AXIS S2224 is preconfigured and preloaded with AXIS Camera Station video management software, and includes licenses for 24 channels plus all necessary system software. AXIS Camera Station offers an intuitive user interface that allows users to take full advantage of Axis wide range of video surveillance cameras and other IP products. With the operating system stored on a solid-state drive (SSD) and 5-year warranty, AXIS S2224 provides a reliable surveillance solution.
- AXIS Camera Station licenses included; All-in-one solution with integrated PoE switch; Full compatibility with Axis products; High-definition surveillance with up to 4K resolution
